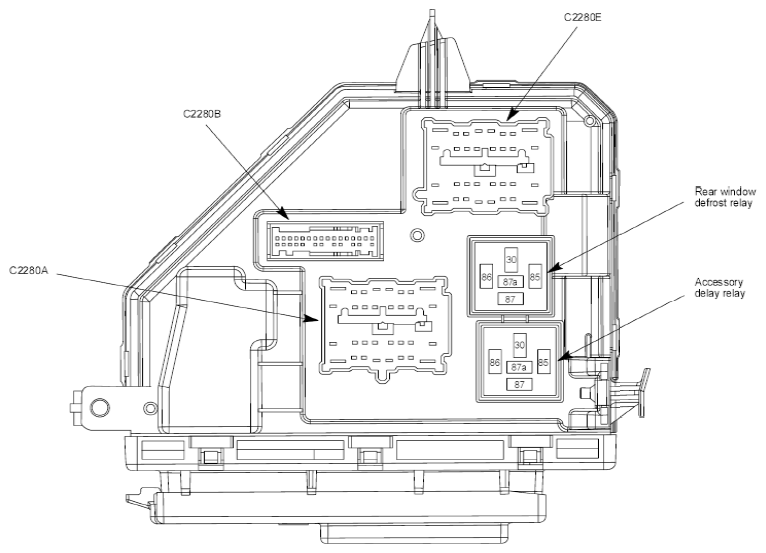

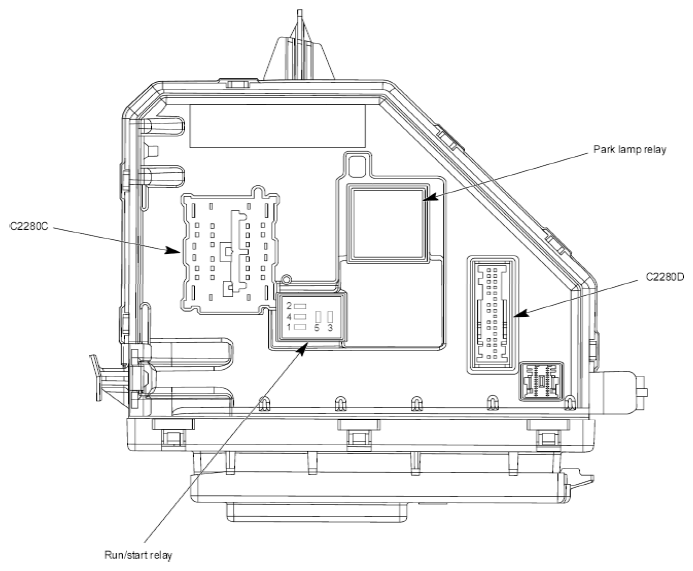

Smart Junction Box (SJB)
NOTE:
SJB is located behind left side of dash. See Fig 1.

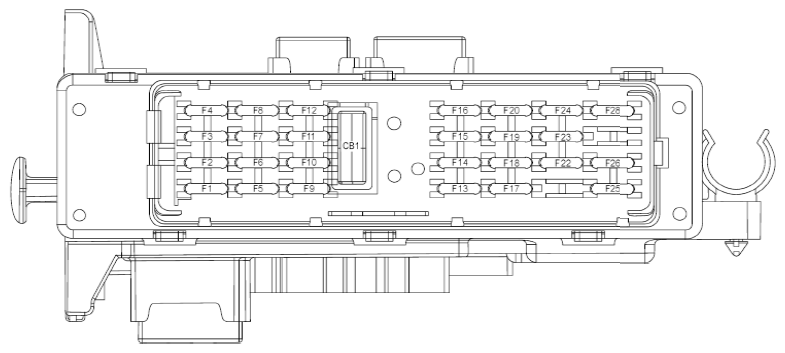

SMART JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F1 | 20 | Adjustable pedal switch, Roof opening panel module |
| F2 | 5 | Smart Junction Box (SJB) |
| F3 | 20 | Audio Control Module (ACM) |
| F4 | 10 | Data Link Connector (DLC) |
| F5 | 5 | Rear window motor, Rear window adjust switch, Roof opening panel module, Auto-dimming interior mirror unit, Door lock switch, driver side, Door lock switch, passenger side |
| F6 | 20 | Driver unlock relay, All unlock relay, All lock relay, Liftgate release relay |
| F7 | 15 | Trailer tow connector |
| F8 | 15 | Ignition switch, power |
| F9 | 2 | Transmission Control Module (TCM), 6R60, Powertrain Control Module (PCM), Fuel pump relay |
| F10 | 5 | Windshield wiper relay, Ignition switch |
| F11 | 5 | Audio Control Module (ACM) |
| F12 | 5 | Trailer tow relay, Battery charge, Rear wiper module, Audio Control Module (ACM) |
| F13 | 15 | Climate control assembly, Exterior rear view mirror, driver side Exterior rear view mirror, passenger side |
| F14 | 20 | Horn, left |
| F15 | 10 | Reversing lamps, Auto-dimming interior mirror unit |
| F16 | 10 | Trailer tow connector |
| F17 | 10 | Restraints Control Module (RCM), Passenger Air bag Deactivation (PAD) indicator, Occupant Classification System Module (OCSM) |
| F18 | 10 | Anti-lock Brake System (ABS) module, 4X4 control module Heated Seat/windshield switch, Electronic compass, Auto-dimming interior mirror unit, Traction control switch, Four-wheel driver switch Parking Aid Module (PAM), Auxiliary climate control assembly, front, Blend door actuator, rear |
| F19 | 15 | Not used |
| F20 | 10 | Climate control assembly, HVAC module, DATC, Brake shift interlock, Temperature blend door actuator, driver |
| F21 | - | Not used |
| F22 | 15 | Brake pedal position switch, Park/turn lamp, left front, Park/turn lamp, right front, Park/stop/turn lamp, left rear, Park/stop/turn lamp, right rear |
| F23 | 15 | Exterior rear view mirrors, Instrument illumination, Courtesy lamps |
| F24 | 10 | Instrument Cluster (IC), Autolamp/sunload sensor |
| F25 | 15 | Trailer tow connector |
| F26 | 15 | Park lamps, License plate lamps, Side lamps |
| F27 | 15 | Stop lamps (Mountaineer) |
| F28 | 10 | Climate control assembly, HVAC module, DATC |
| CB1 | 25 | Master window adjust switch |
