Roof Opening Panel Switch Connector

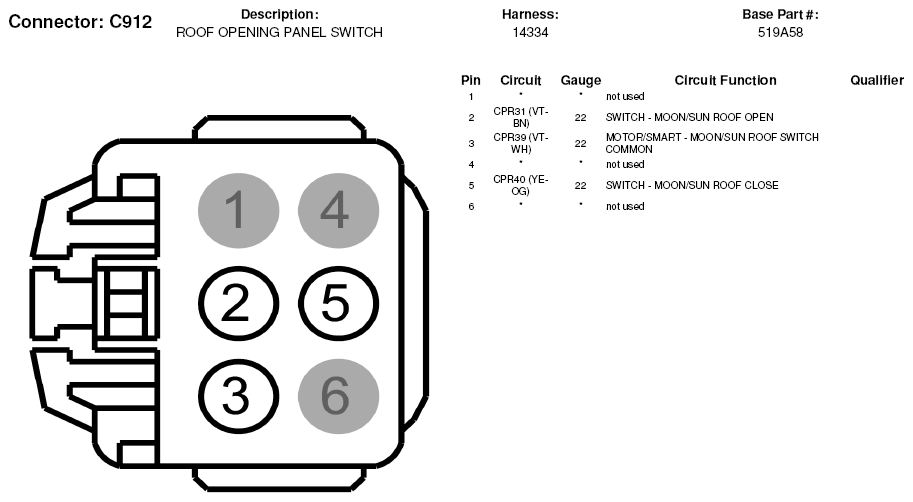

Fig 1: Roof Opening Panel Switch Connector End View (C912)
G05600802

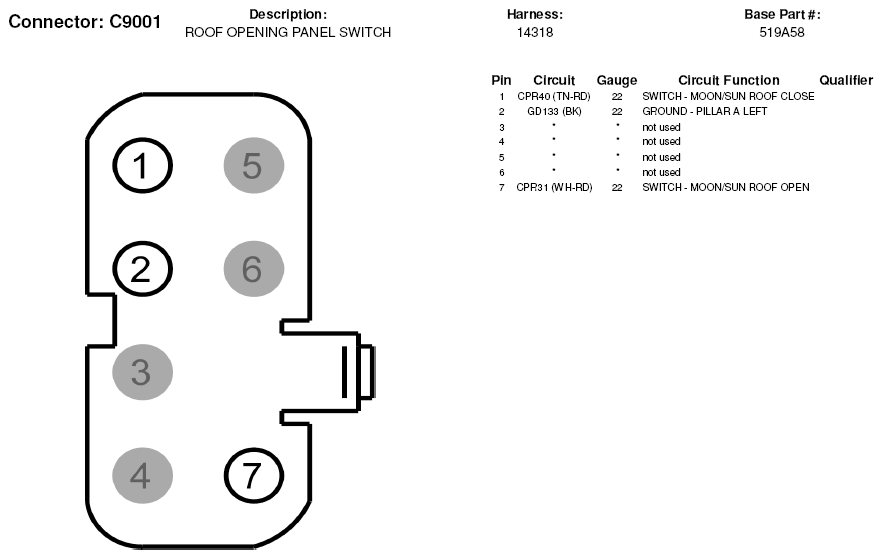

Fig 2: Roof Opening Panel Switch Connector End View (C9001)
G05600950

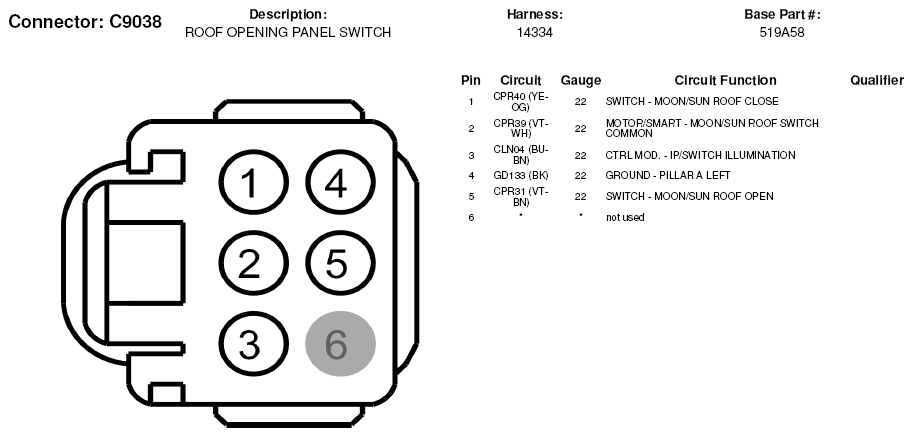

Fig 3: Roof Opening Panel Switch Connector End View (C9038)
G05600955
