Home >> Ford >> 2008 >> Explorer 4.0 E, 4WD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector Views >> Rear Window Adjust Switch Connector

Rear Window Adjust Switch Connector

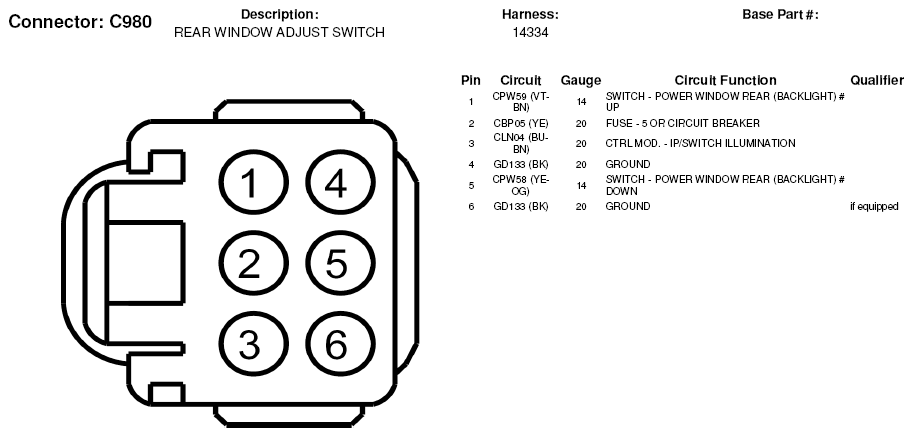

Fig 1: Rear Window Adjust Switch Connector End View (C980)

G05600812
