Inline Connectors

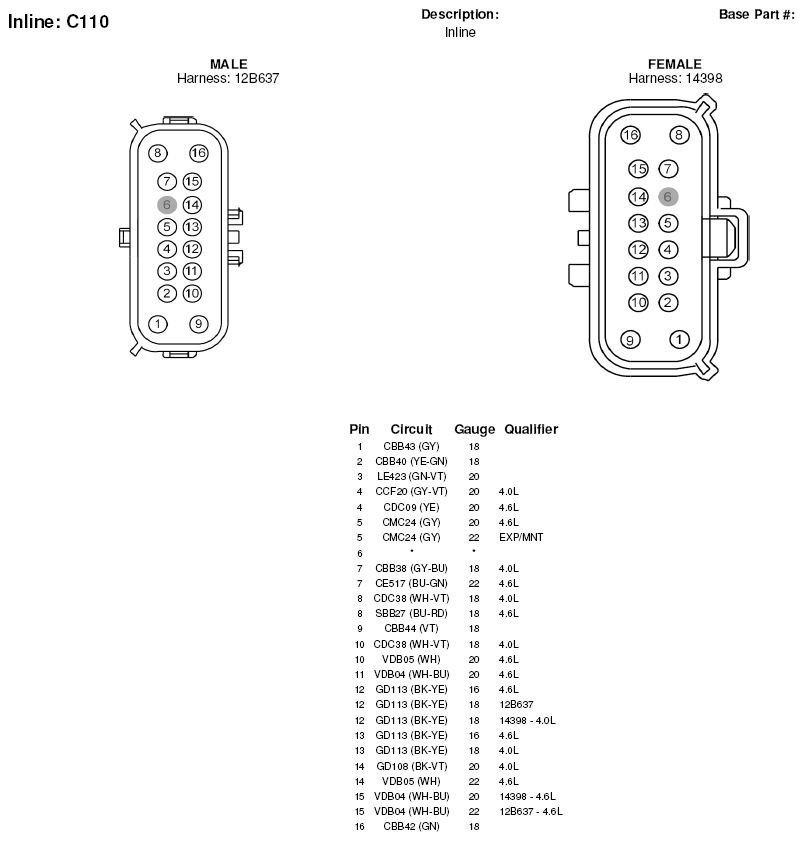

Fig 1: Inline Connector End View (C110)

G05600569

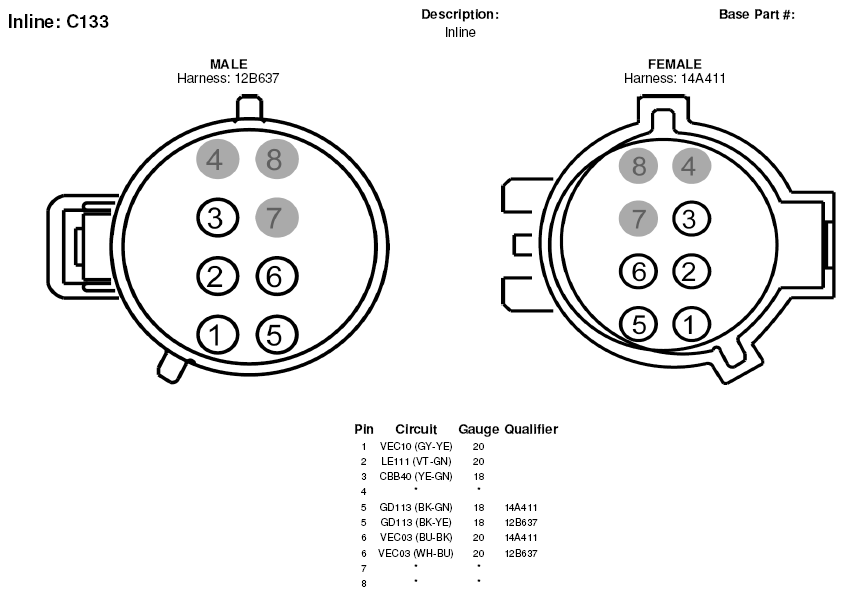

Fig 2: Inline Connector End View (C133)

G05600584

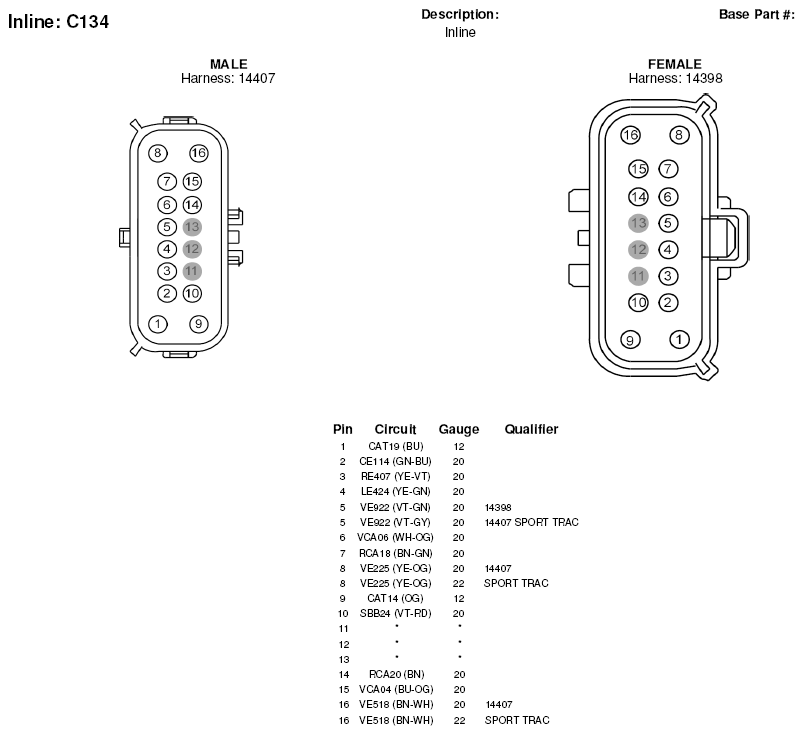

Fig 3: Inline Connector End View (C134)

G05600585

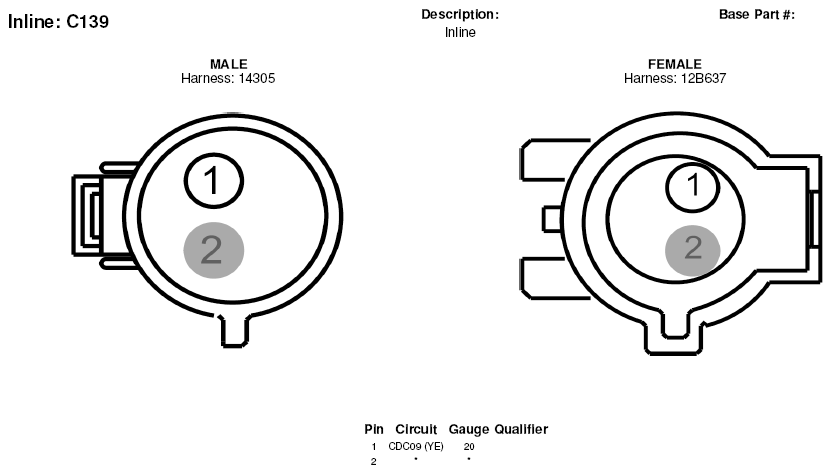

Fig 4: Inline Connector End View (C139)

G05600588

Fig 5: Inline Connector End View (C140)

G05600589

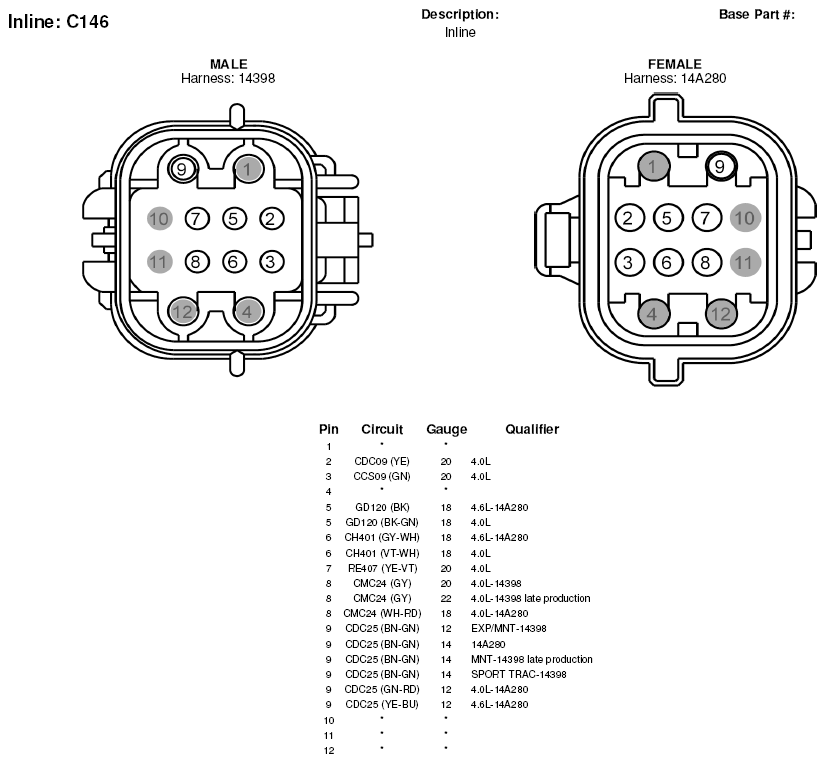

Fig 6: Inline Connector End View (C146)

G05600593

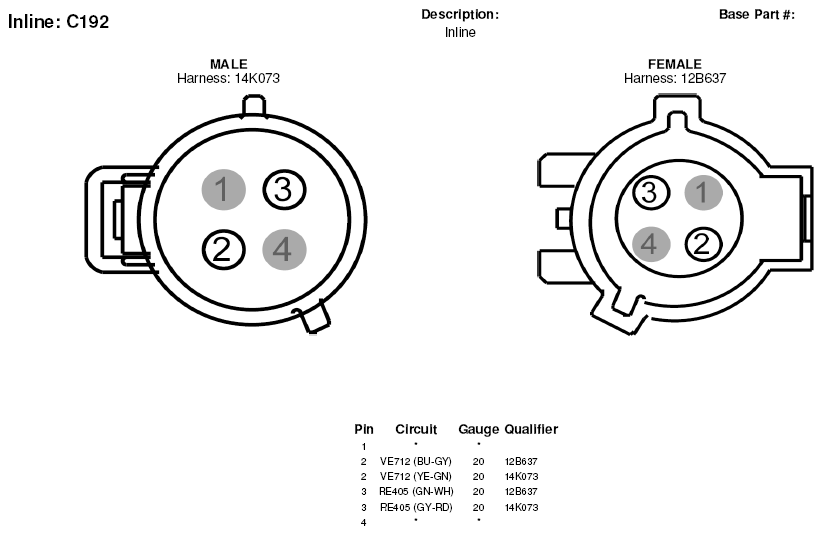

Fig 7: Inline Connector End View (C192)

G05600626

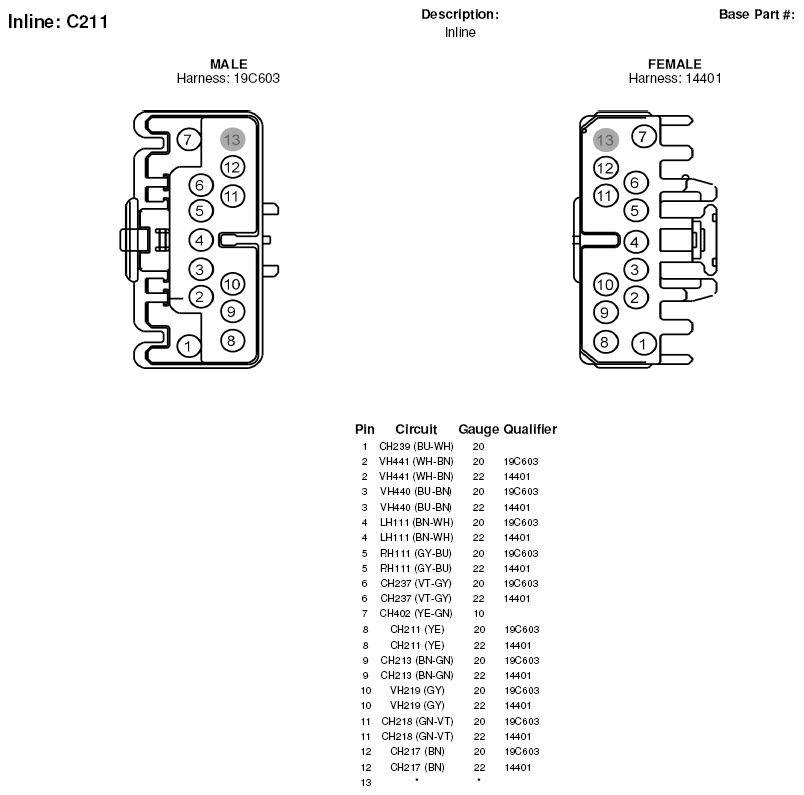

Fig 8: Inline Connector End View (C211)

G05600637

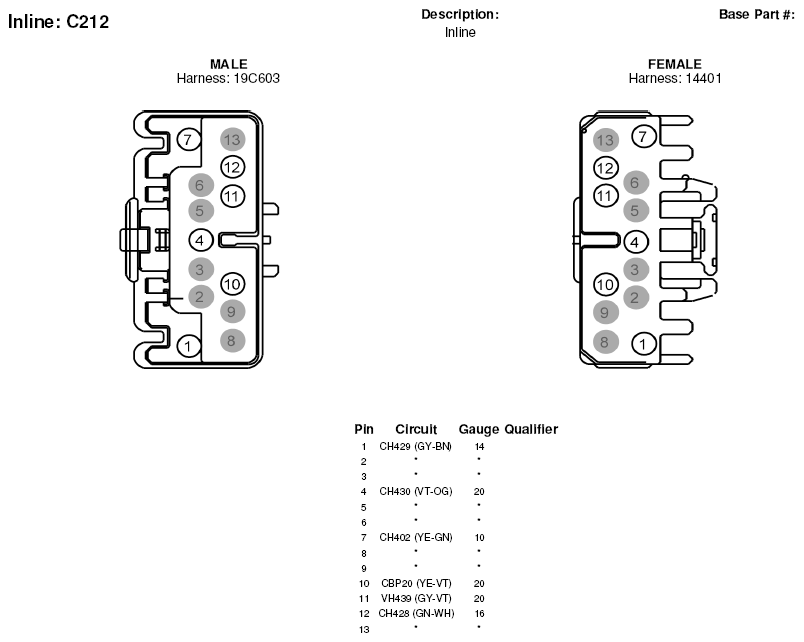

Fig 9: Inline Connector End View (C212)

G05600638

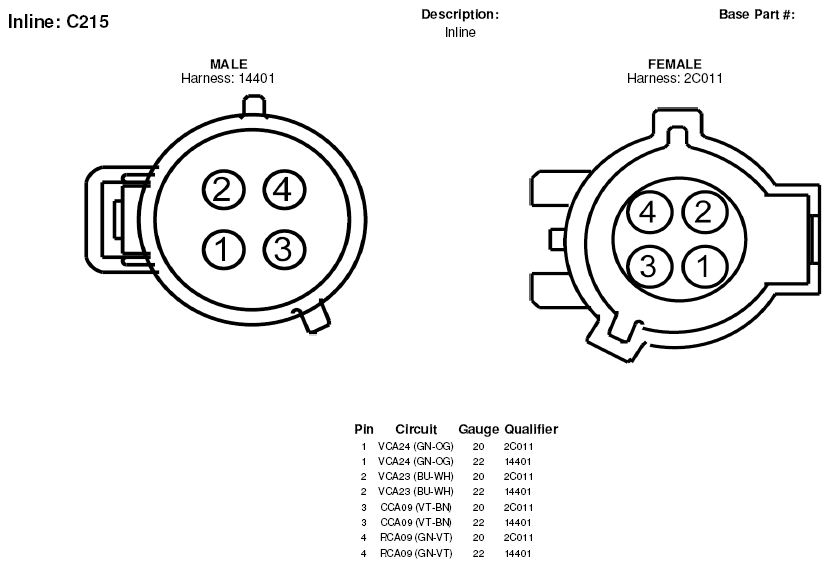

Fig 10: Inline Connector End View (C215)

G05600642

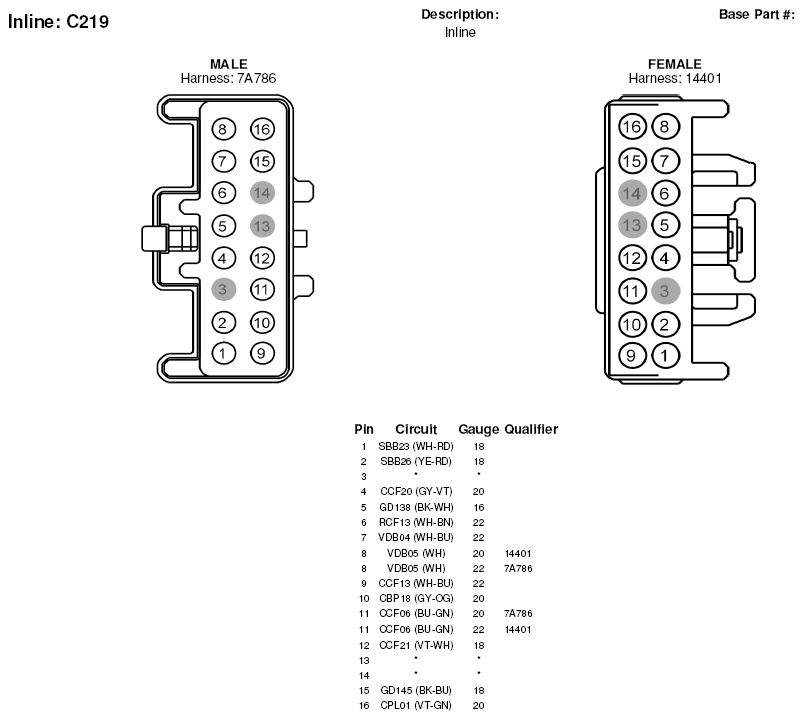

Fig 11: Inline Connector End View (C219)

G05600648

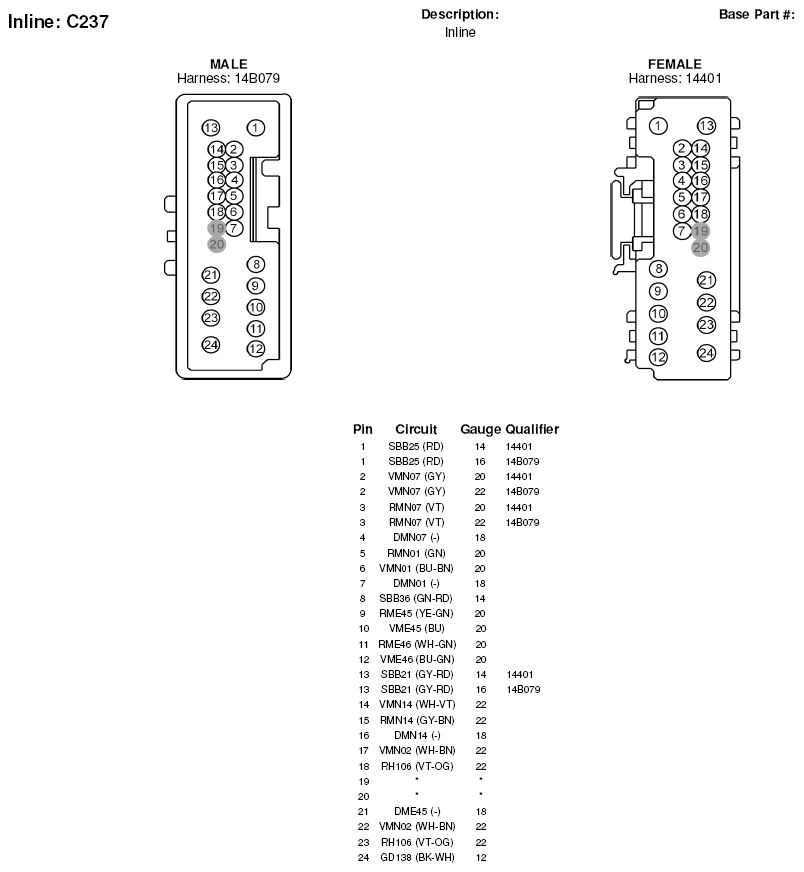

Fig 12: Inline Connector End View (C237)

G05600654

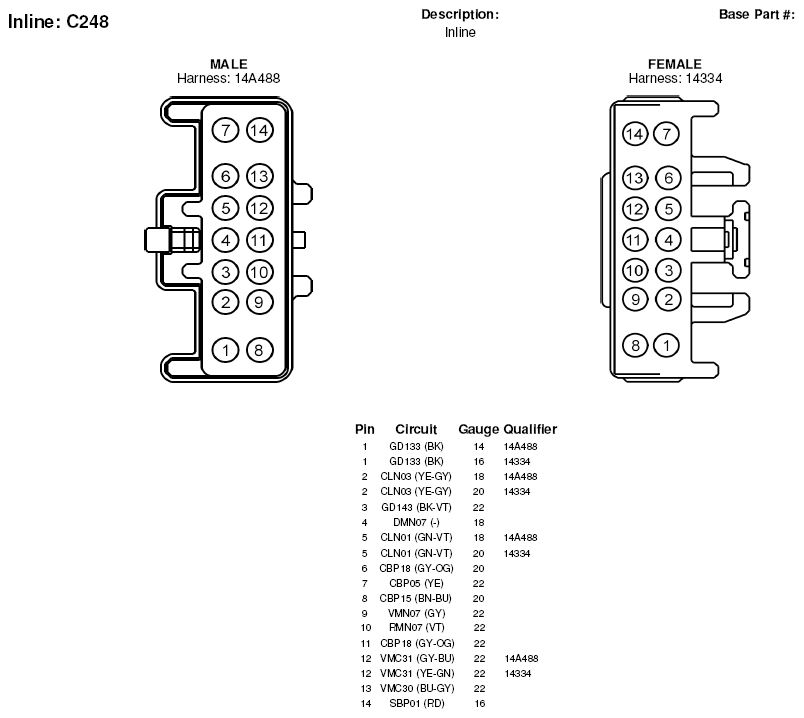

Fig 13: Inline Connector End View (C248)

G05600656

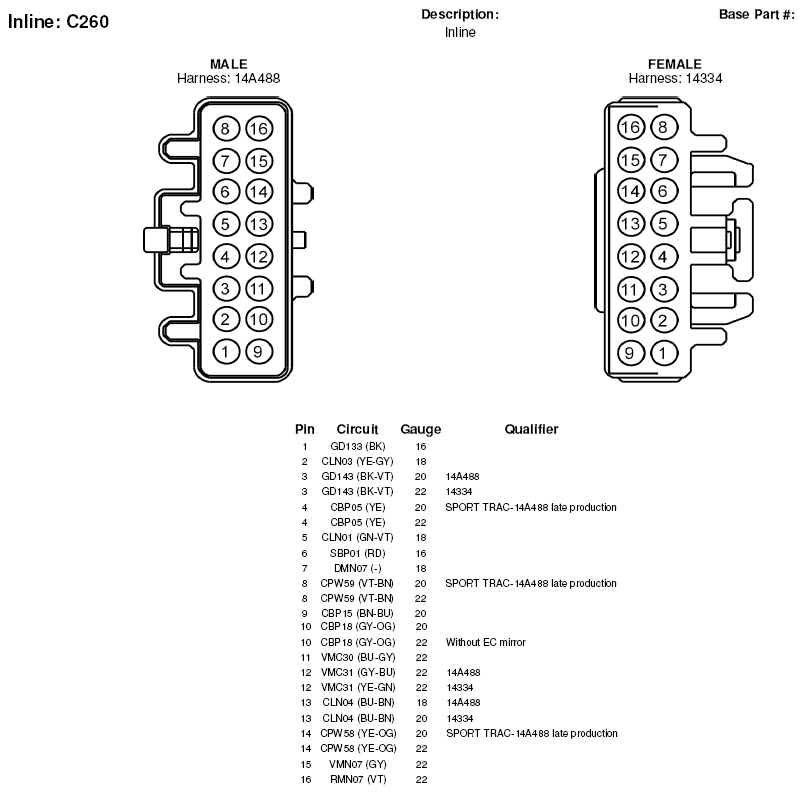

Fig 14: Inline Connector End View (C260)

G05600662

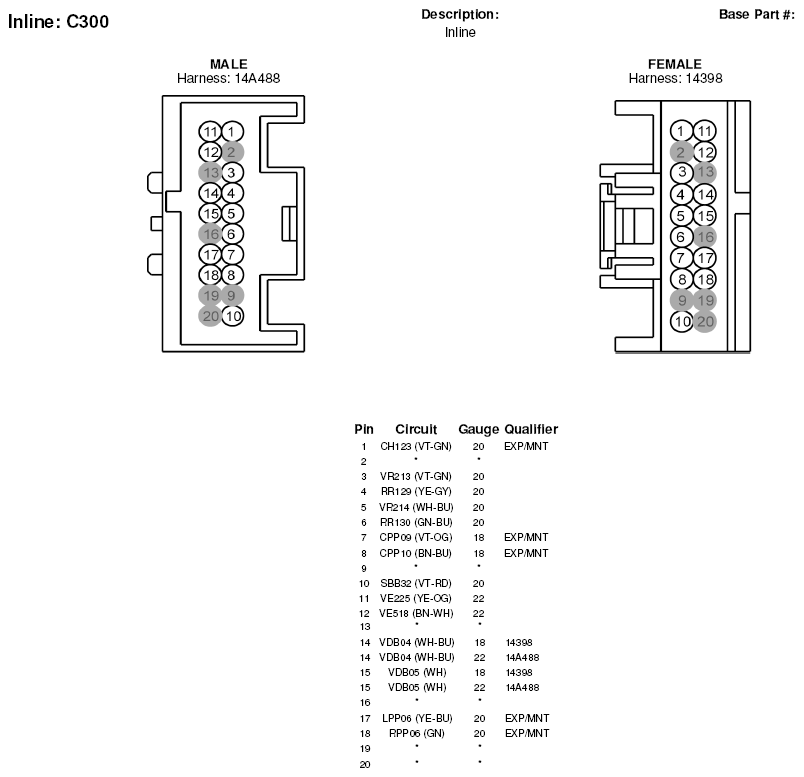

Fig 15: Inline Connector End View (C300)

G05600679

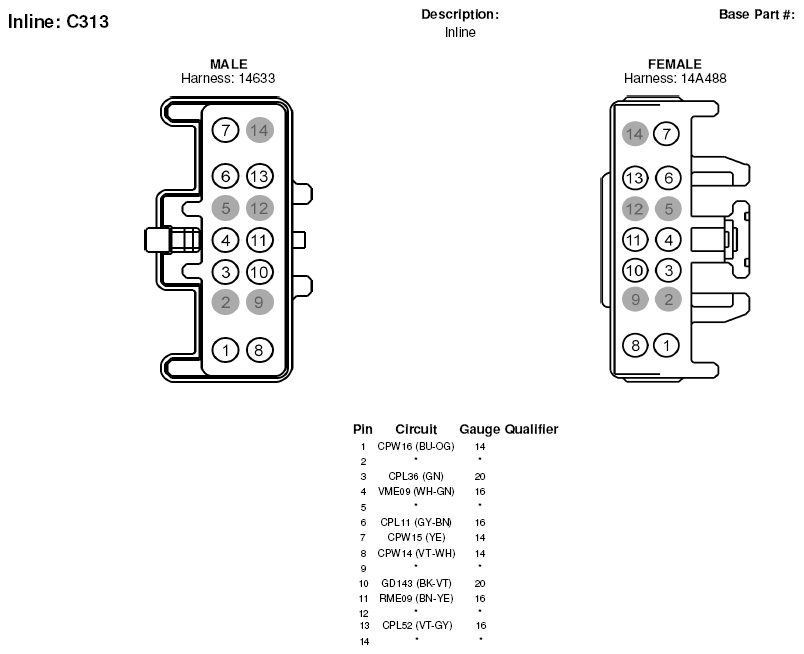

Fig 16: Inline Connector End View (C313)

G05600688

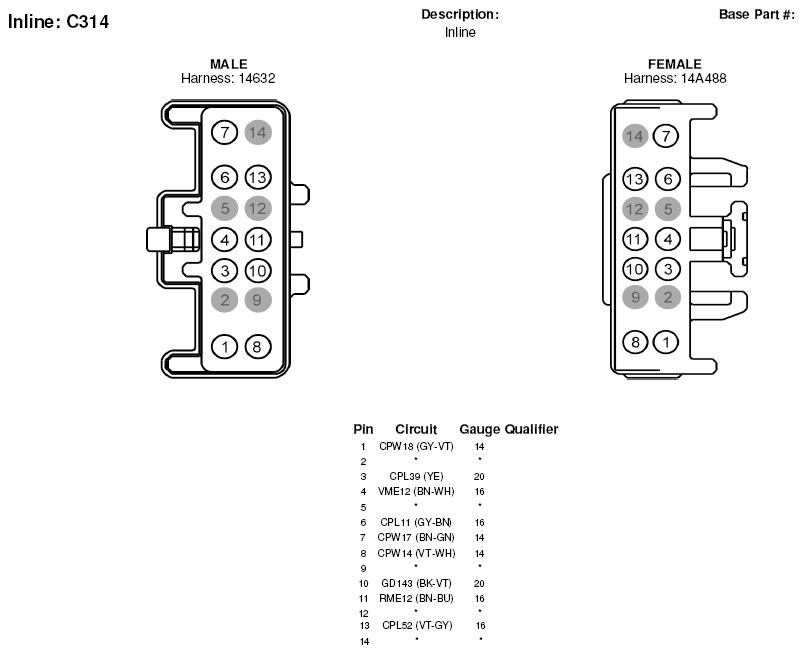

Fig 17: Inline Connector End View (C314)

G05600689

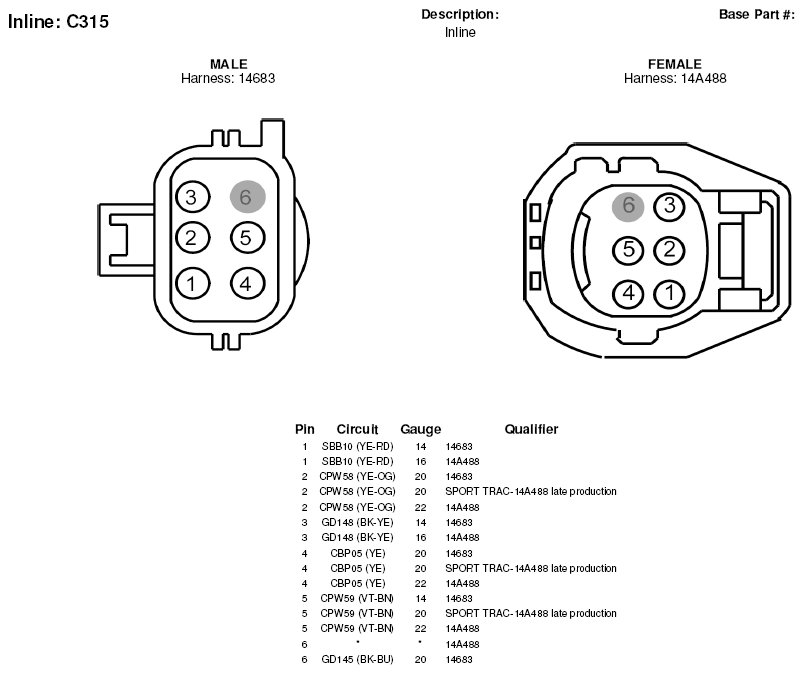

Fig 18: Inline Connector End View (C315)

G05600690

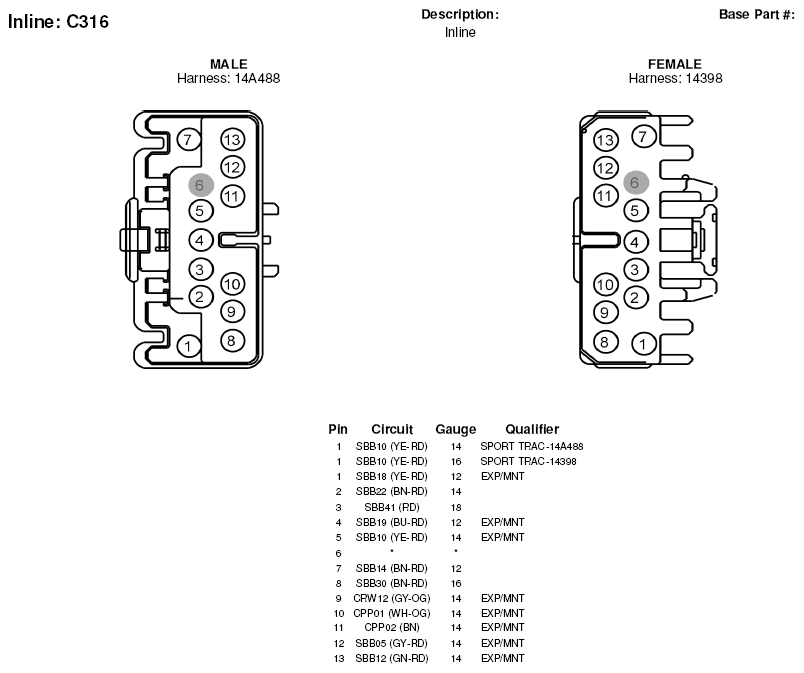

Fig 19: Inline Connector End View (C316)

G05600691

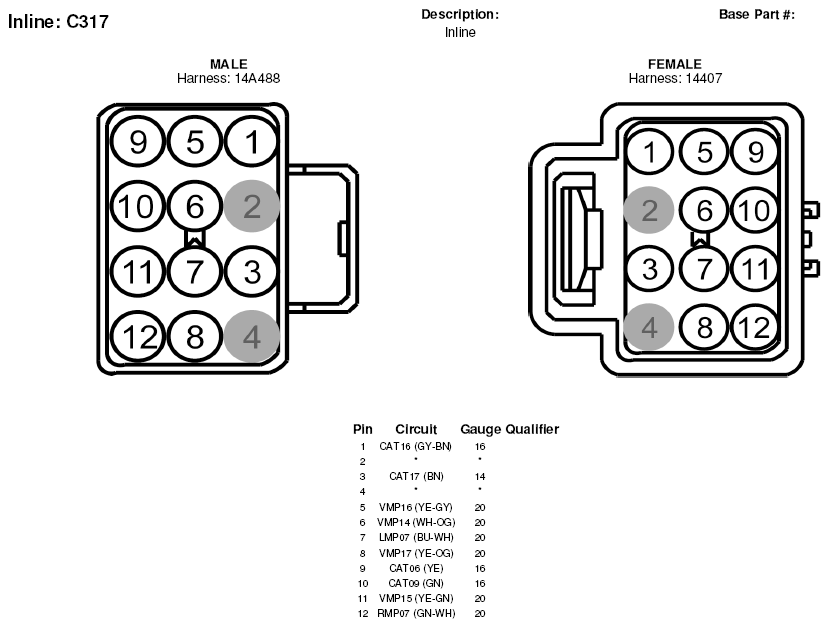

Fig 20: Inline Connector End View (C317)

G05600692

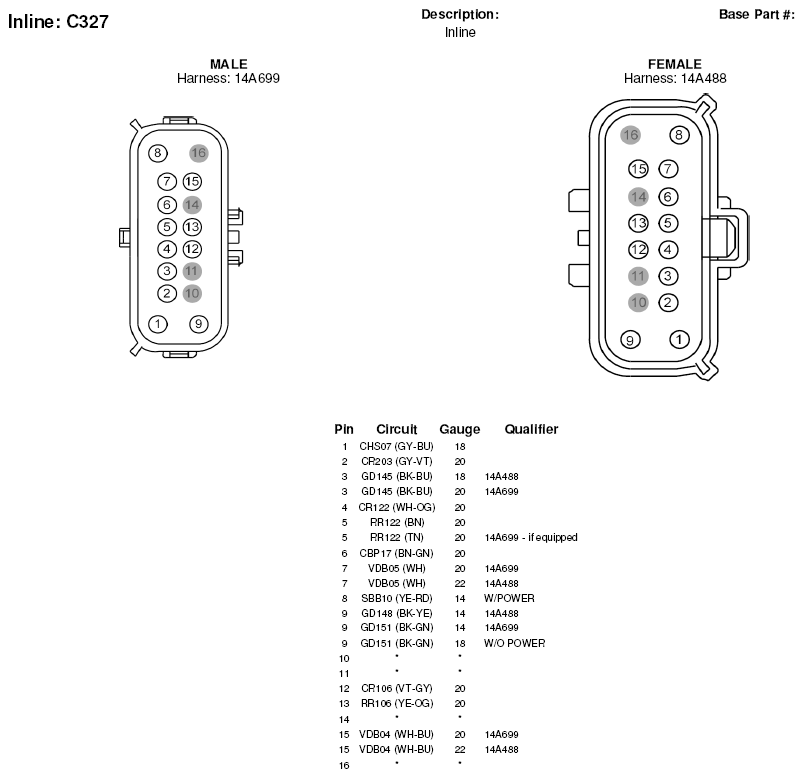

Fig 21: Inline Connector End View (C327)

G05600694

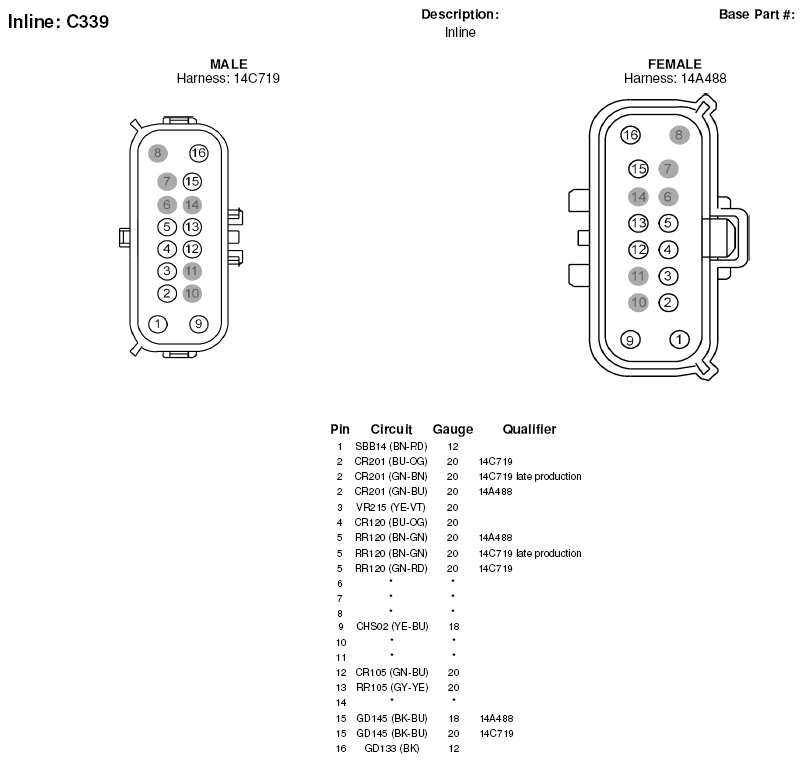

Fig 22: Inline Connector End View (C339)

G05600700

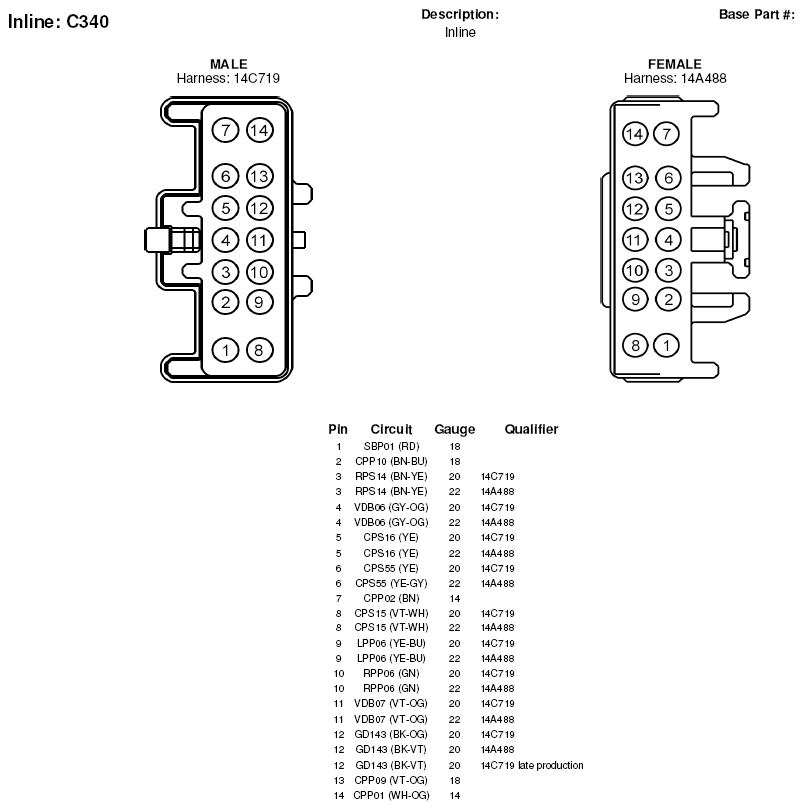

Fig 23: Inline Connector End View (C340)

G05600701

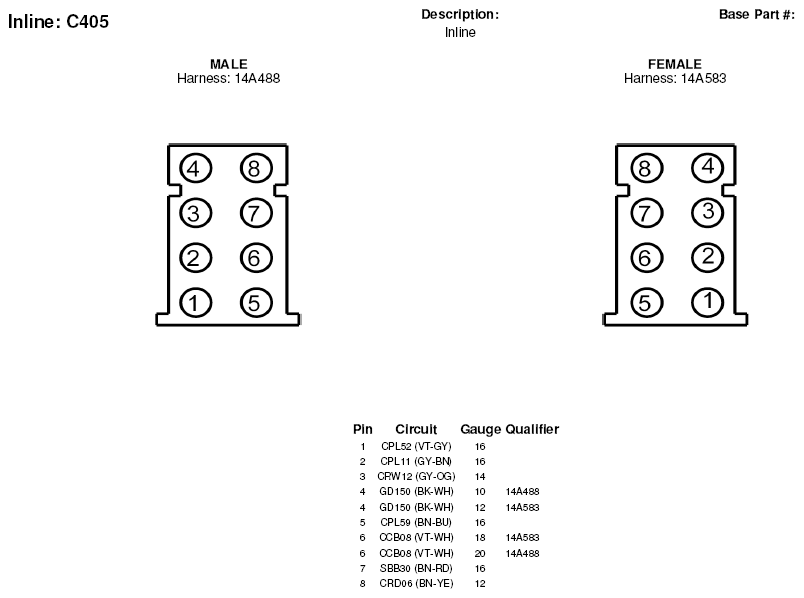

Fig 24: Inline Connector End View (C405)

G05600718

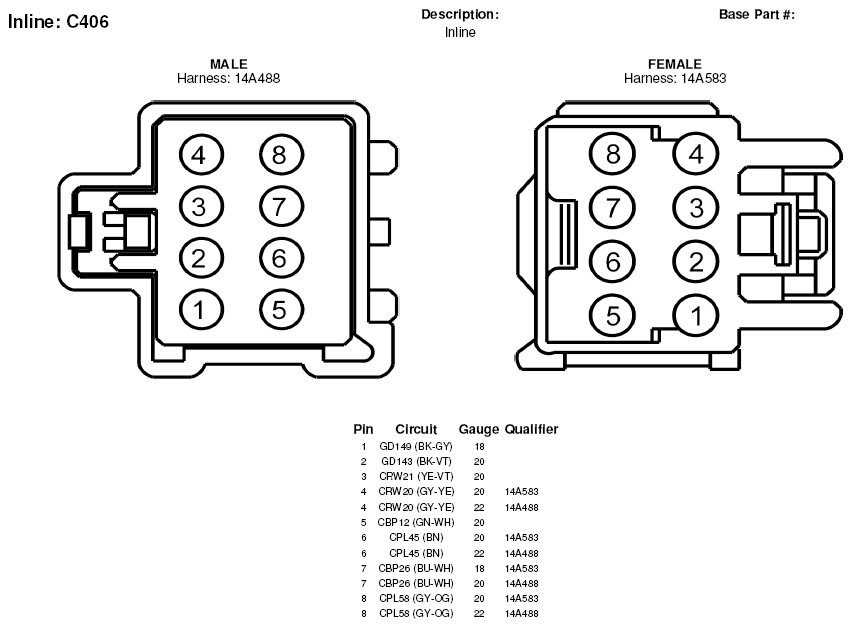

Fig 25: Inline Connector End View (C406)

G05600719

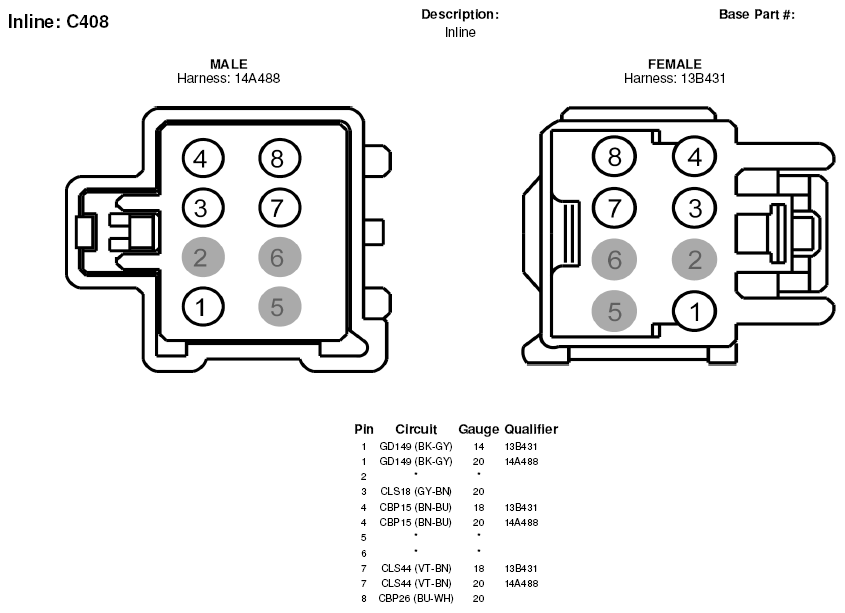

Fig 26: Inline Connector End View (C408)

G05600720

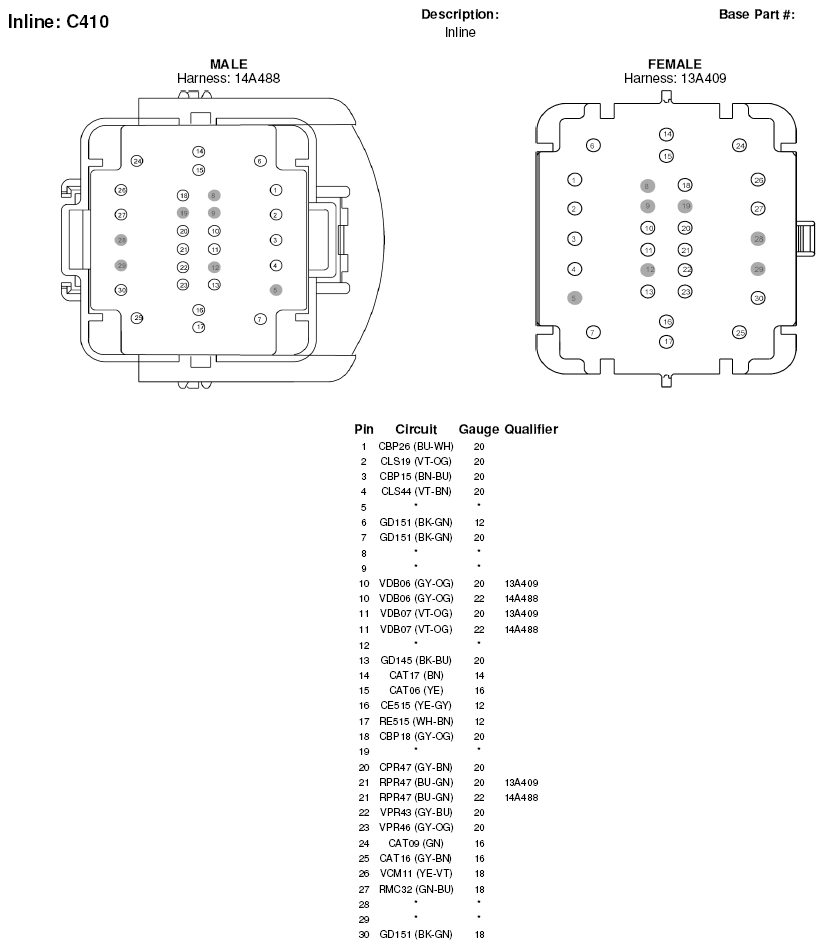

Fig 27: Inline Connector End View (C410)

G05600721

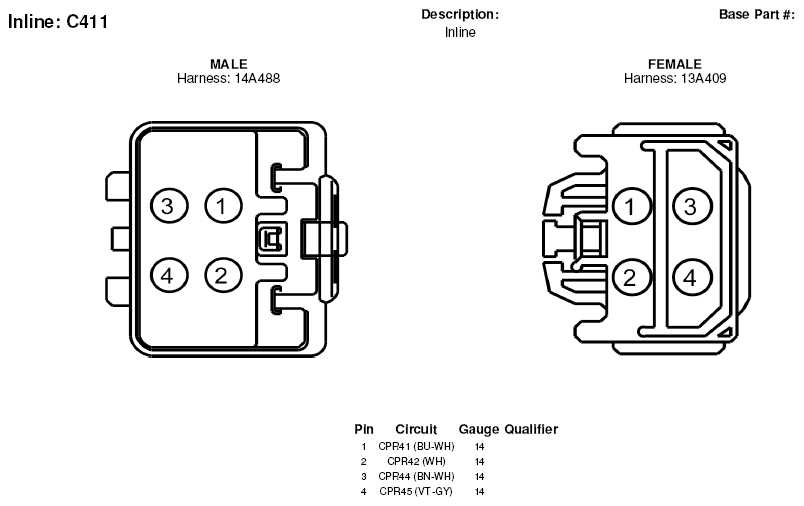

Fig 28: Inline Connector End View (C411)

G05600722

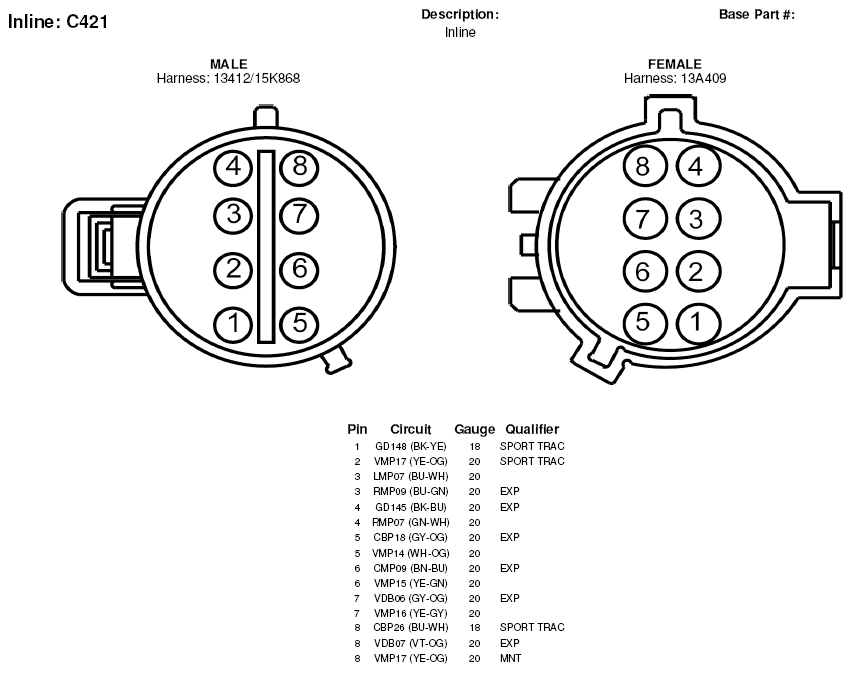

Fig 29: Inline Connector End View (C421)

G05600729

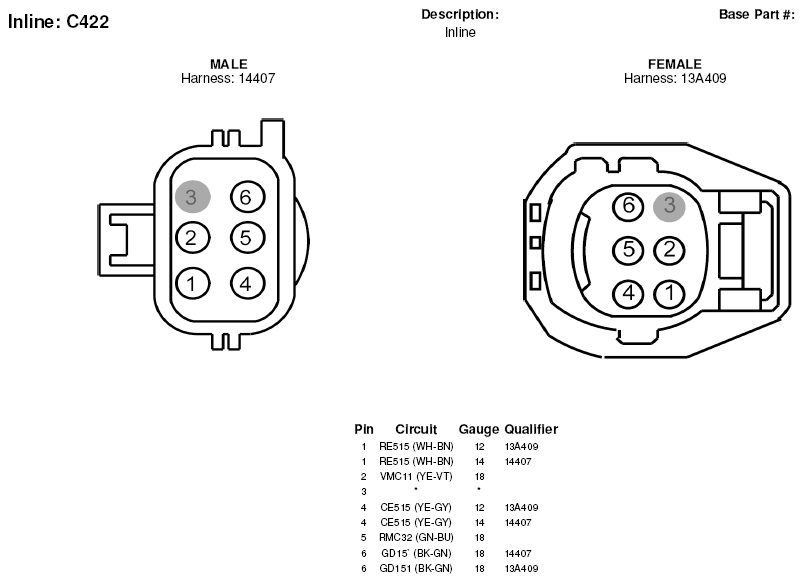

Fig 30: Inline Connector End View (C422)

G05600730

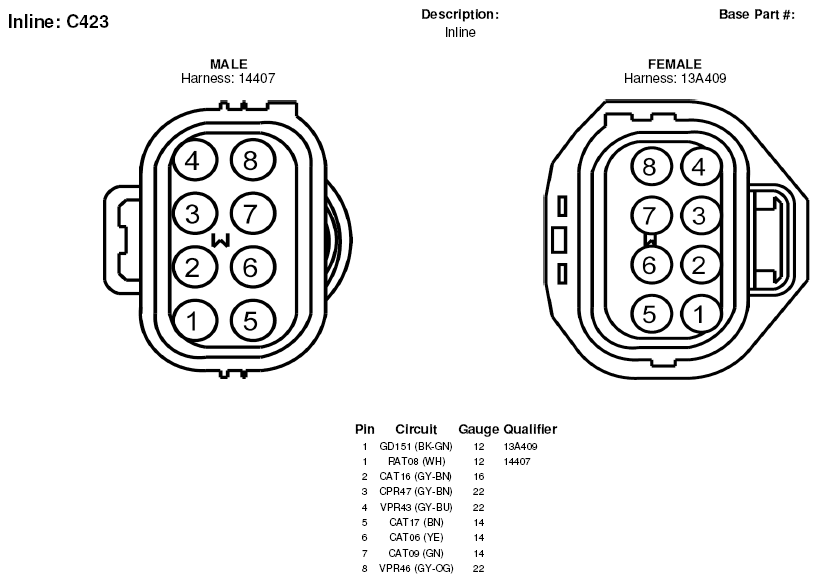

Fig 31: Inline Connector End View (C423)

G05600731

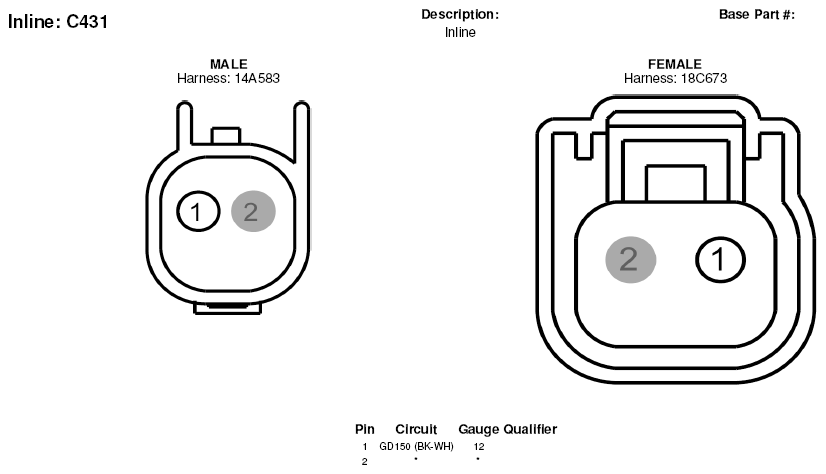

Fig 32: Inline Connector End View (C431)

G05600733

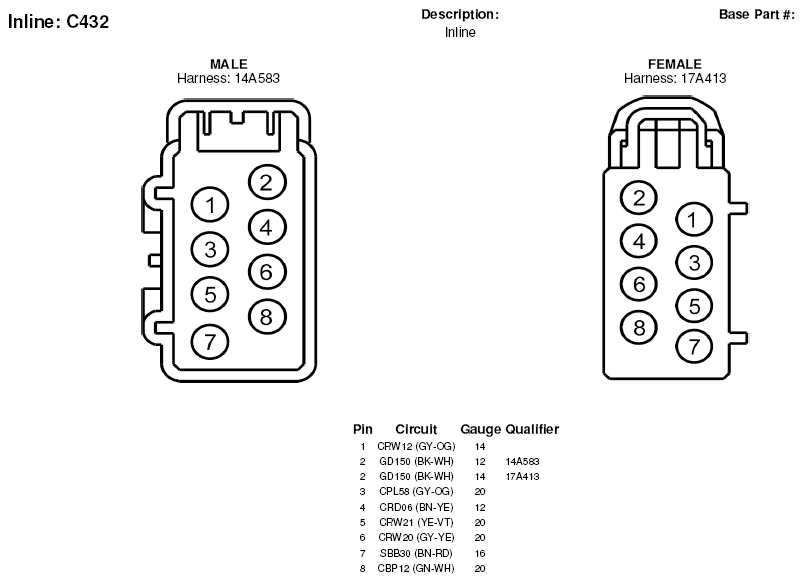

Fig 33: Inline Connector End View (C432)

G05600734

Fig 34: Inline Connector End View (C438)

G05600738

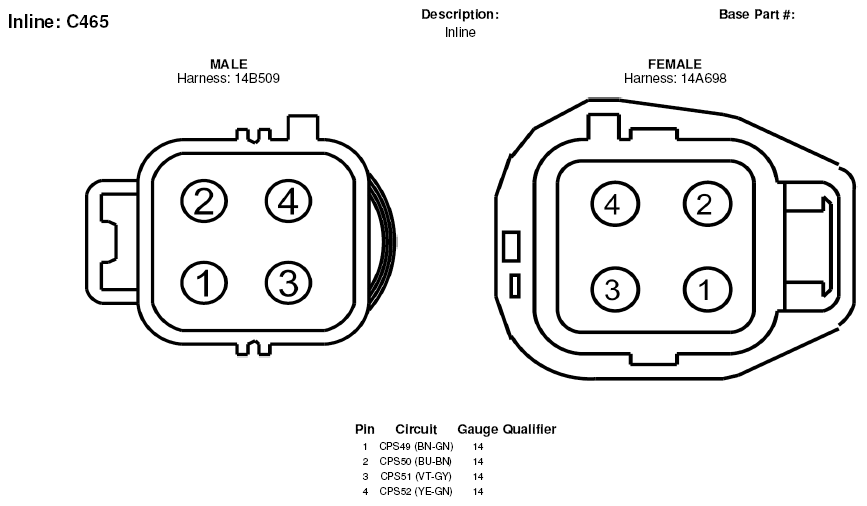

Fig 35: Inline Connector End View (C465)

G05600750

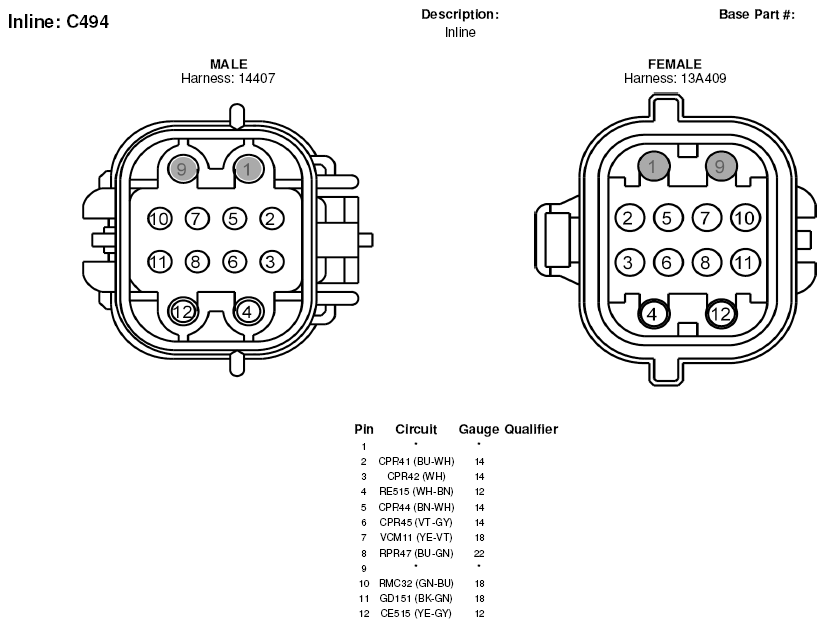

Fig 36: Inline Connector End View (C494)

G05600761

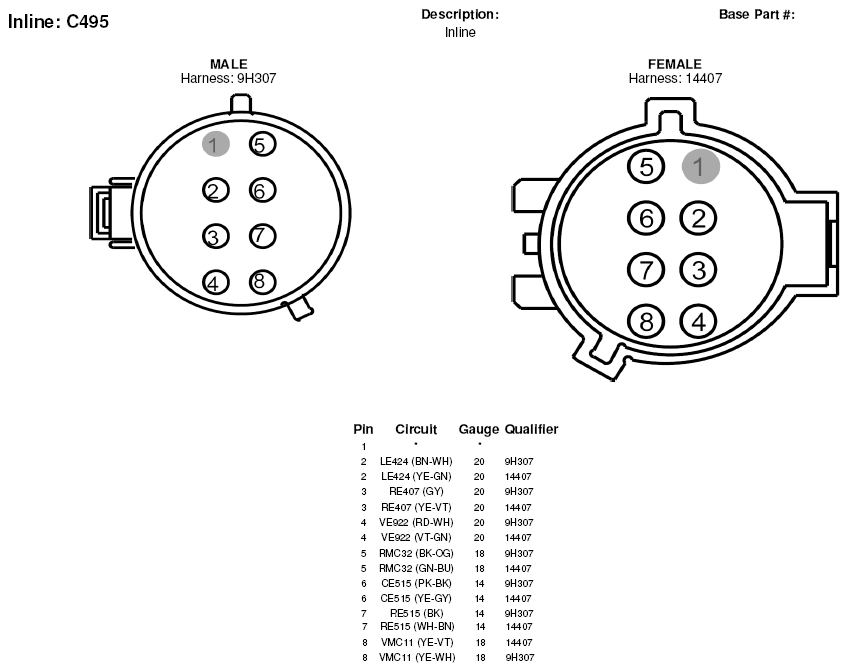

Fig 37: Inline Connector End View (C495)

G05600762

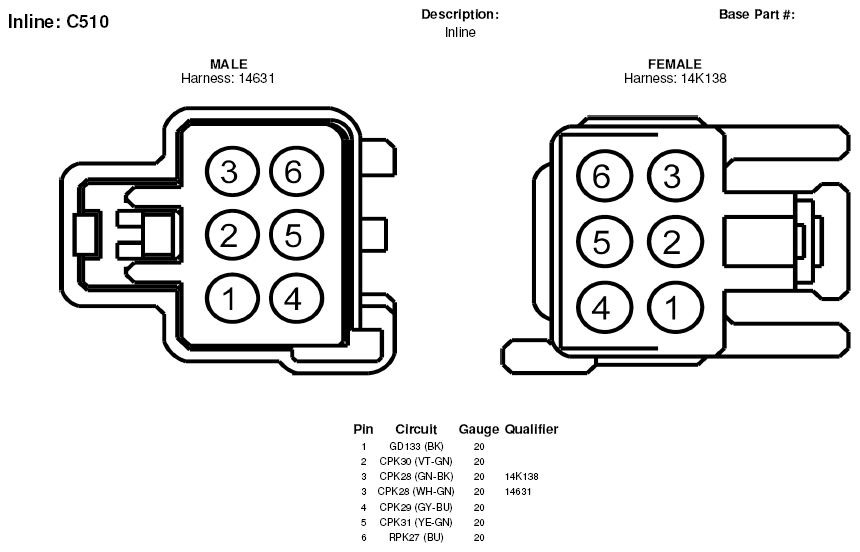

Fig 38: Inline Connector End View (C510)

G05600767

Fig 39: Inline Connector End View (C511)

G05600768

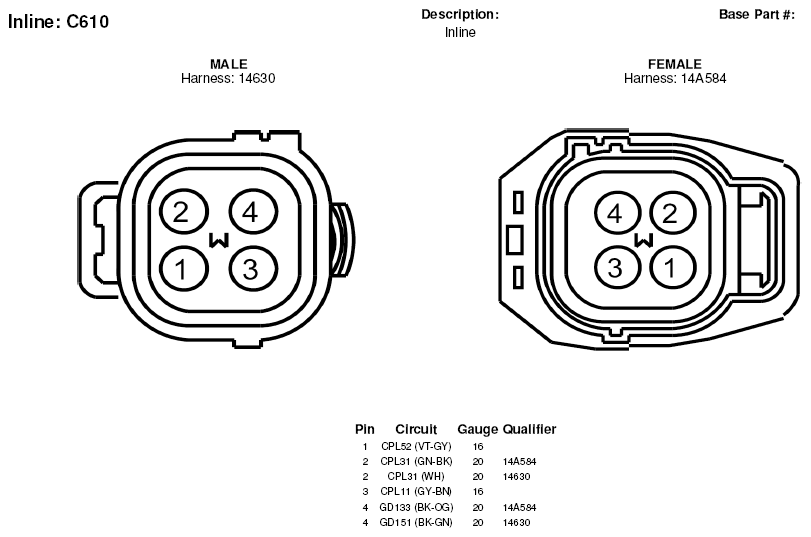

Fig 40: Inline Connector End View (C610)

G05600782

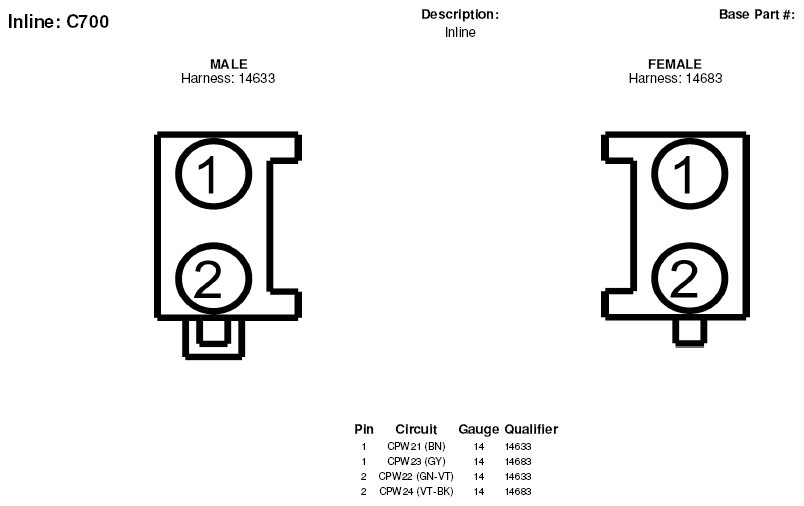

Fig 41: Inline Connector End View (C700)

G05600785

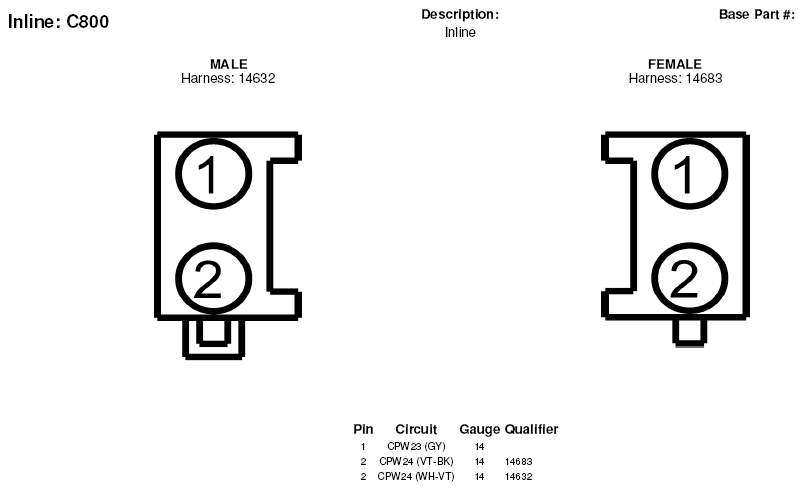

Fig 42: Inline Connector End View (C800)

G05600791

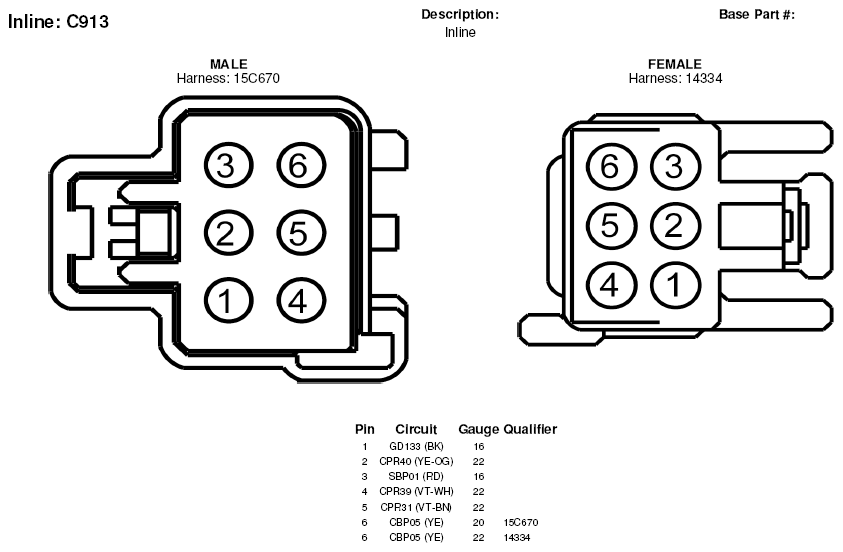

Fig 43: Inline Connector End View (C913)

G05600803

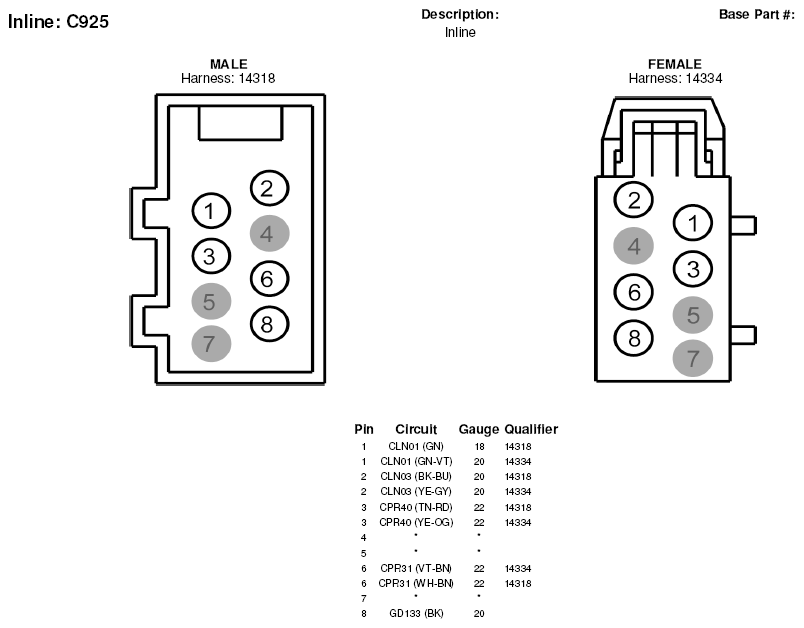

Fig 44: Inline Connector End View (C925)

G05600805

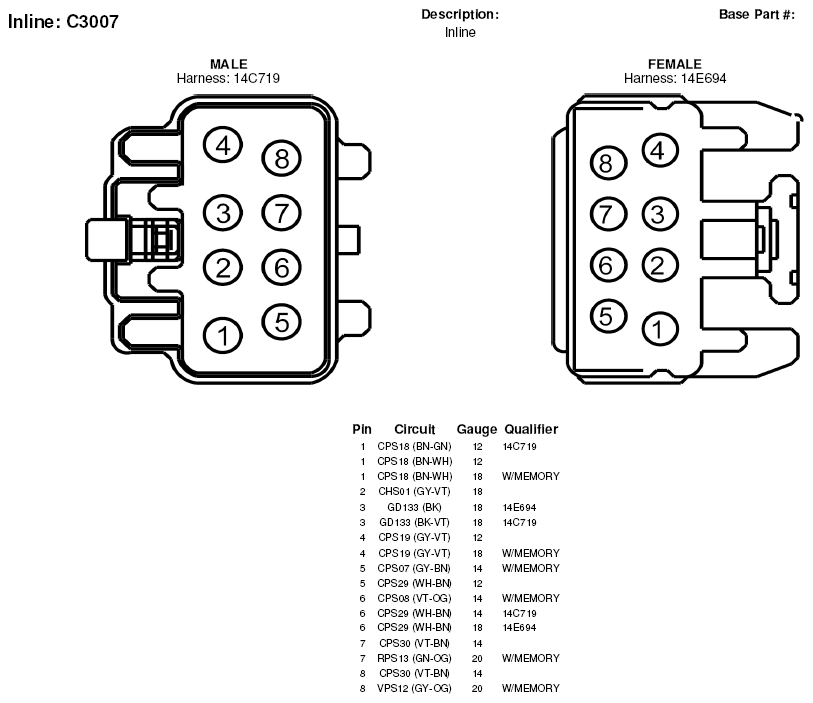

Fig 45: Inline Connector End View (C3007)

G05600882

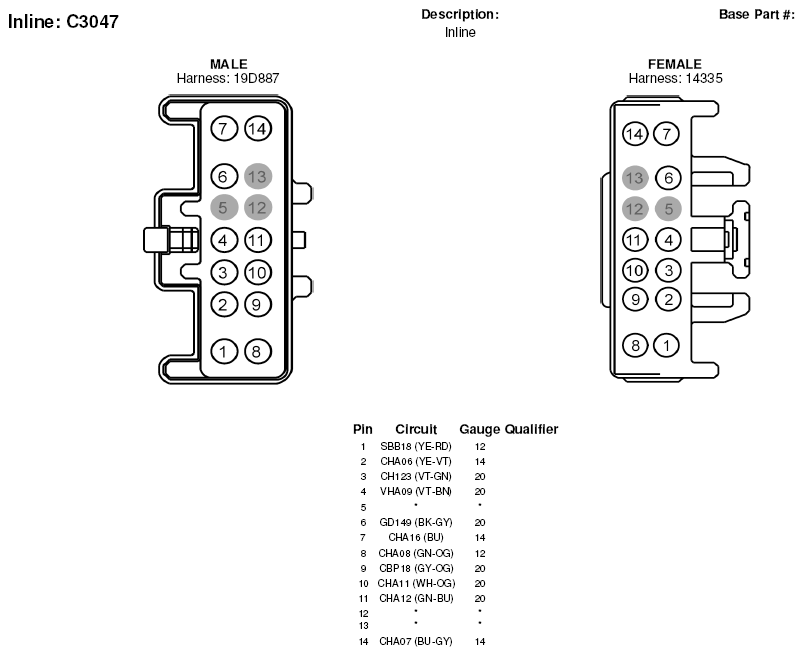

Fig 46: Inline Connector End View (C3047)

G05600890

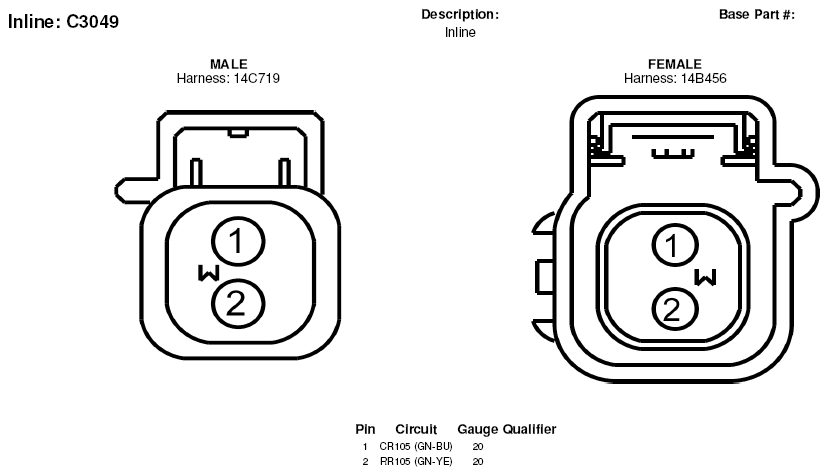

Fig 47: Inline Connector End View (C3049)

G05600891

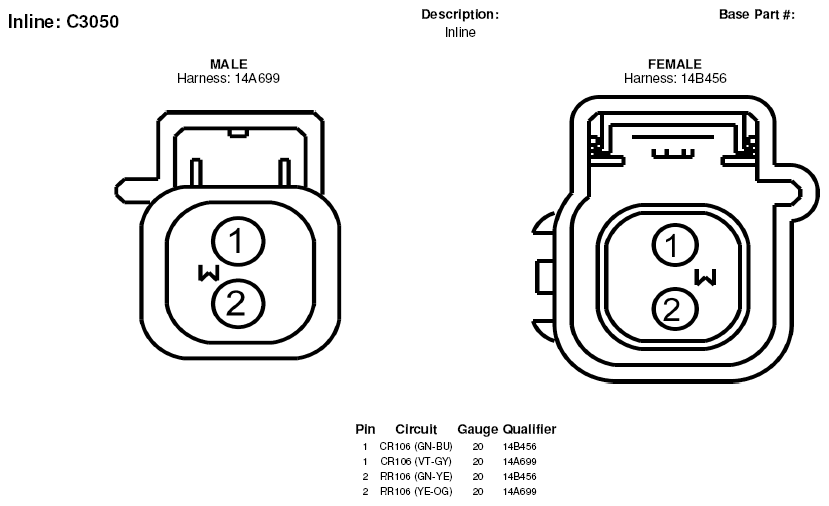

Fig 48: Inline Connector End View (C3050)

G05600892

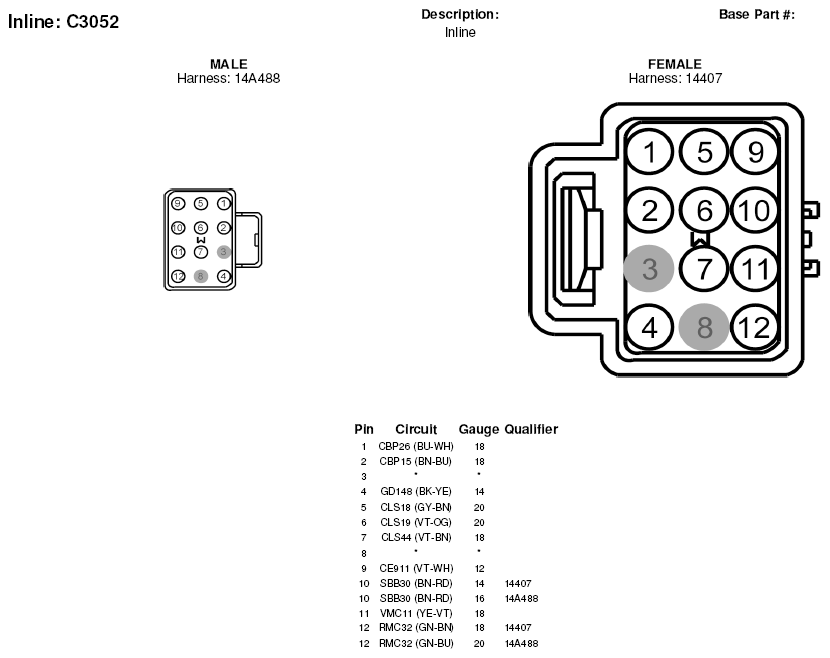

Fig 49: Inline Connector End View (C3052)

G05600893

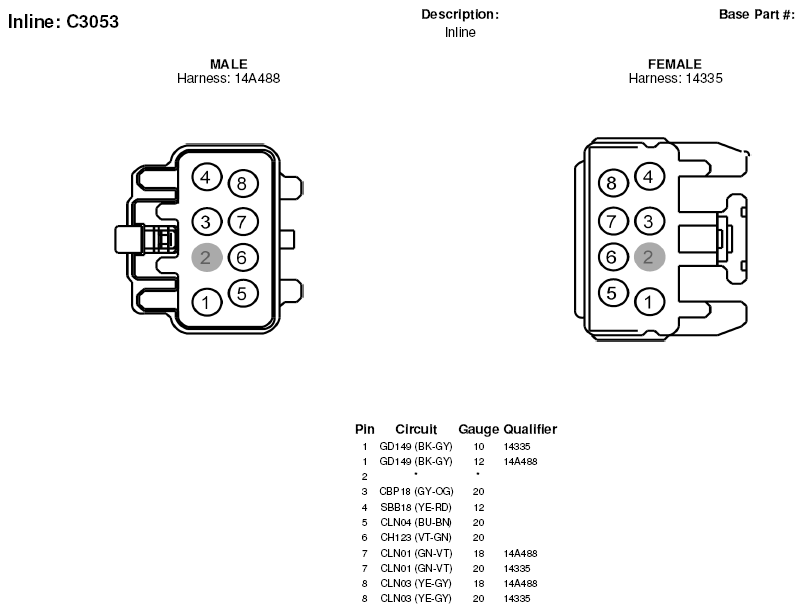

Fig 50: Inline Connector End View (C3053)

G05600894

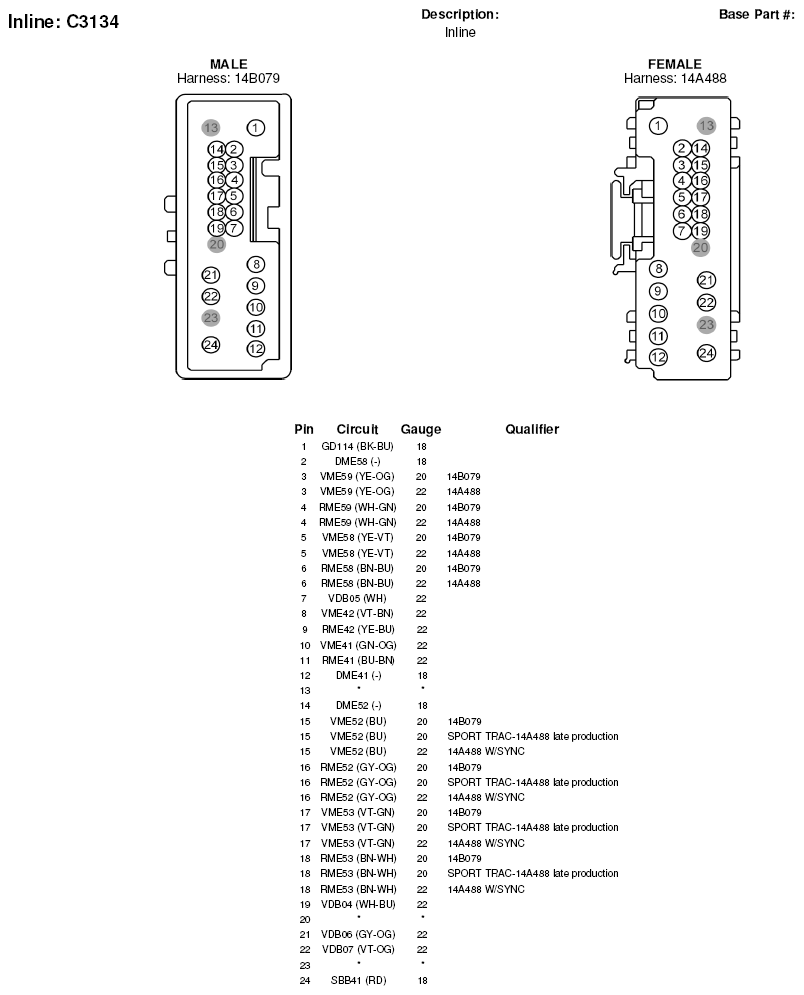

Fig 51: Inline Connector End View (C3134)

G05600900

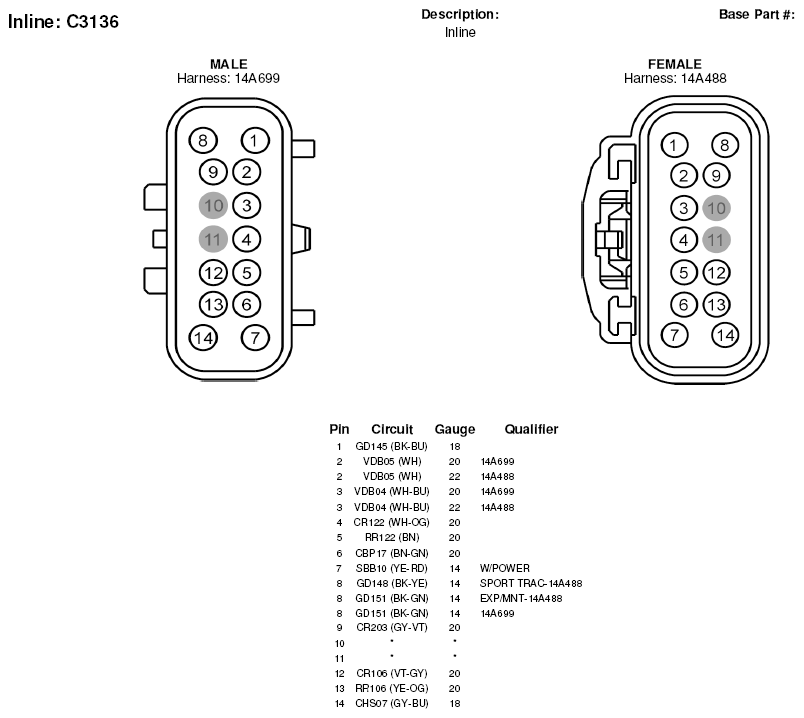

Fig 52: Inline Connector End View (C3136)

G05600903

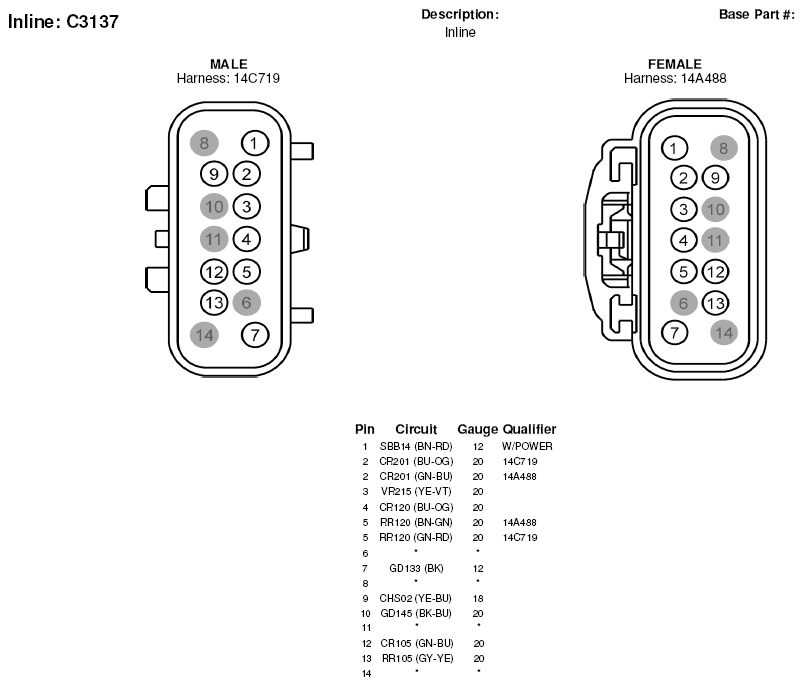

Fig 53: Inline Connector End View (C3137)

G05600904

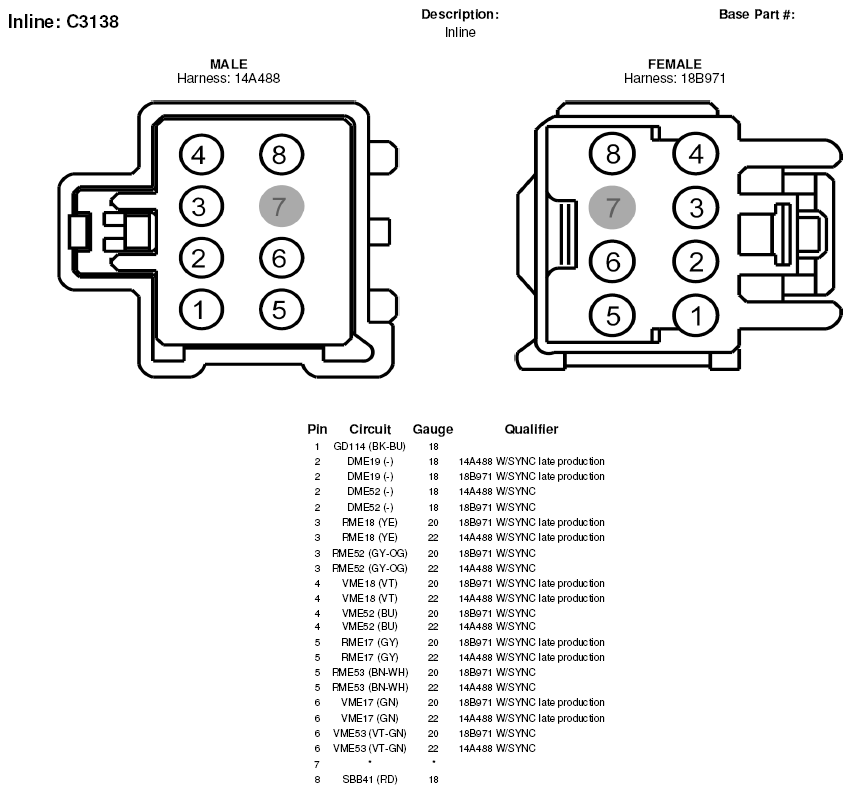

Fig 54: Inline Connector End View (C3138)

G05600905

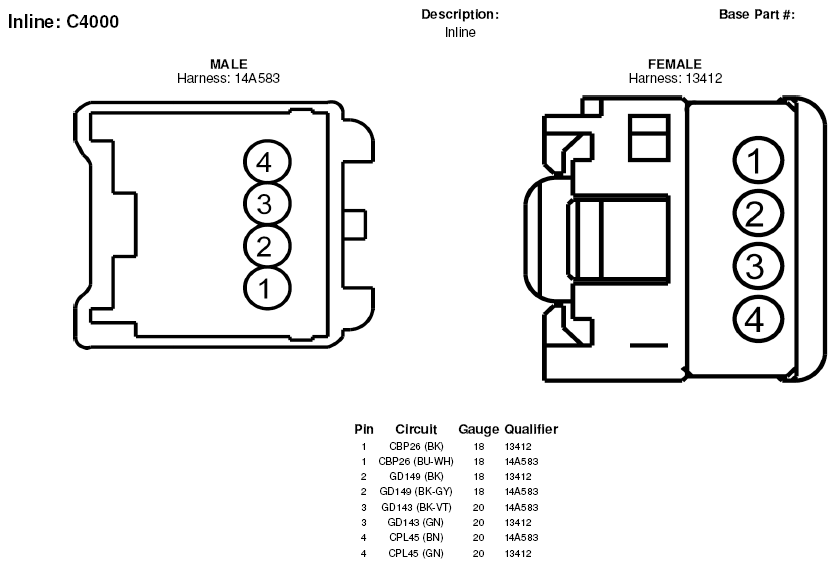

Fig 55: Inline Connector End View (C4000)

G05600925

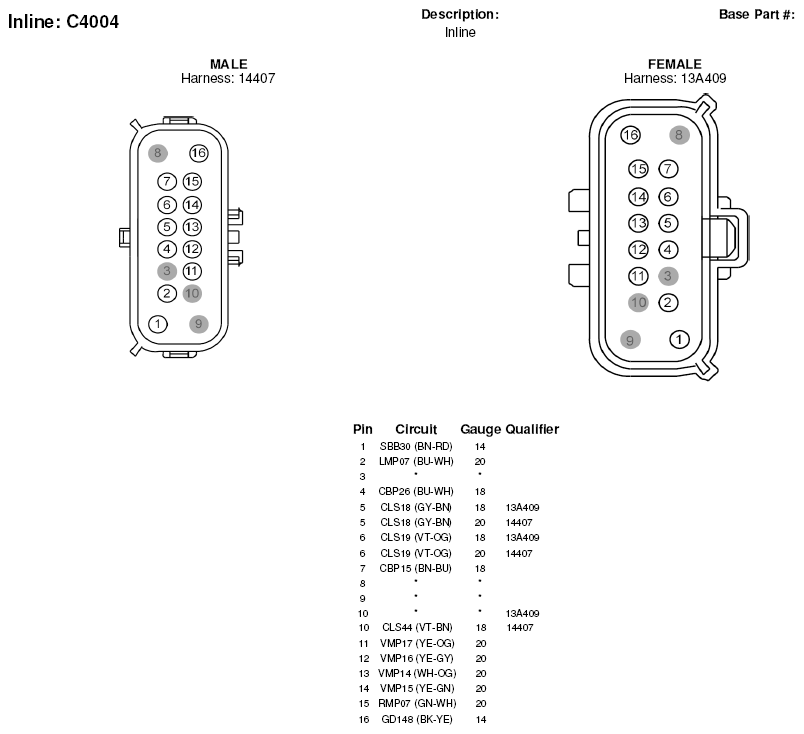

Fig 56: Inline Connector End View (C4004)

G05600926
