Inline Connector

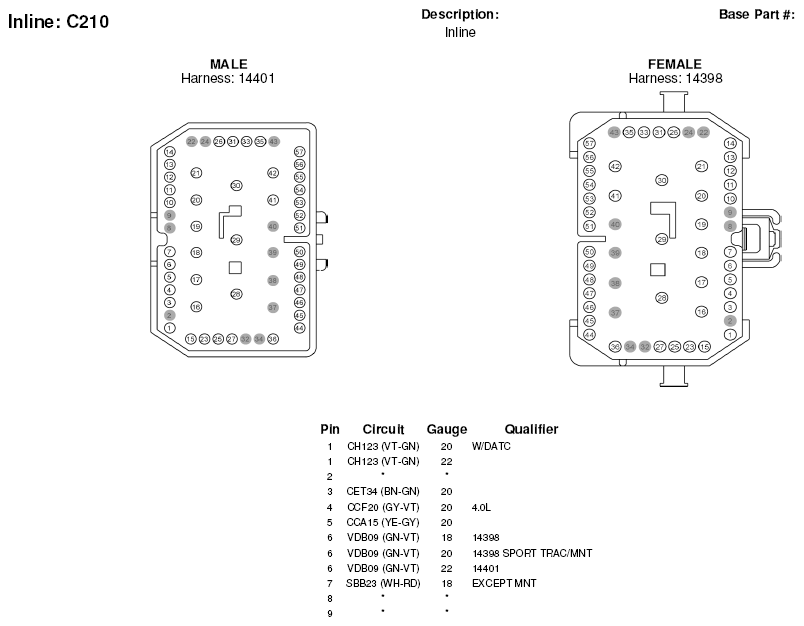

Fig 1: Inline Connector End View (C210) (1 Of 2)

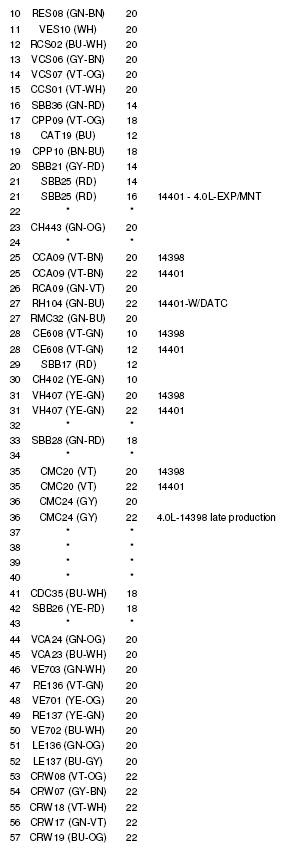

Fig 2: Inline Connector End View (C210) (2 Of 2)

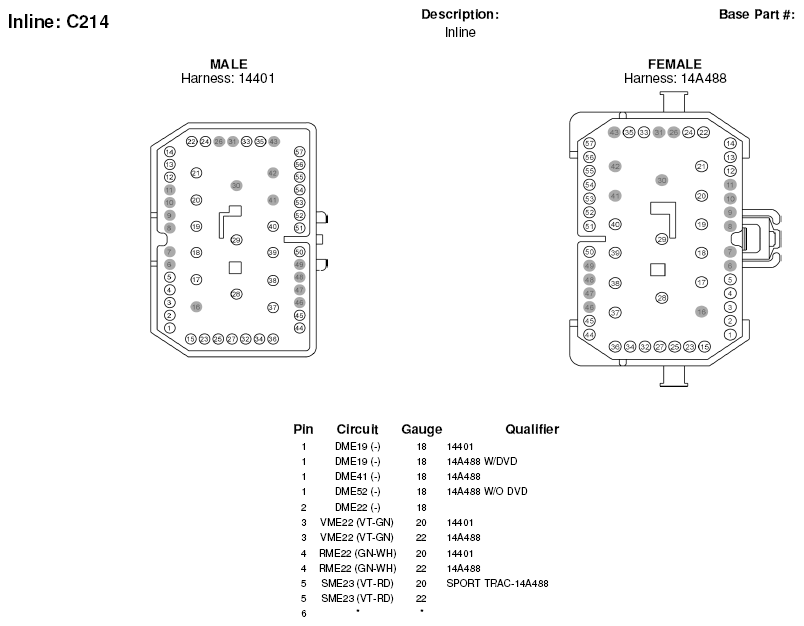

Fig 3: Inline Connector End View (C214) (1 Of 3)

Fig 4: Inline Connector End View (C214) (2 Of 3)

Fig 5: Inline Connector End View (C214) (3 Of 3)

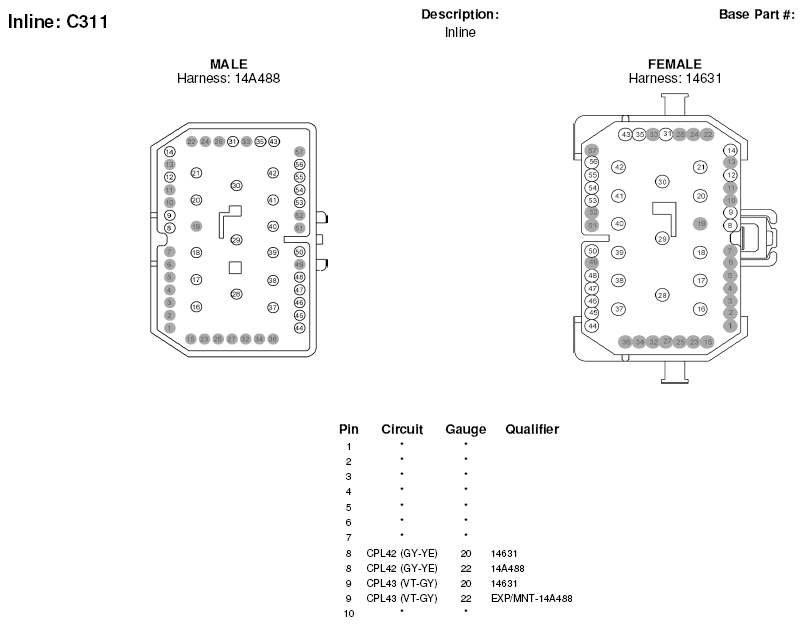

Fig 6: Inline Connector End View (C311) (1 Of 2)

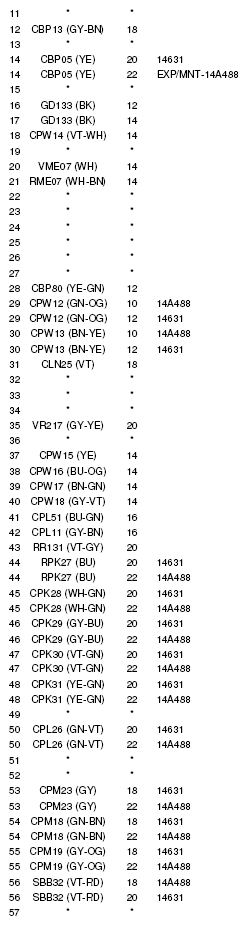

Fig 7: Inline Connector End View (C311) (2 Of 2)

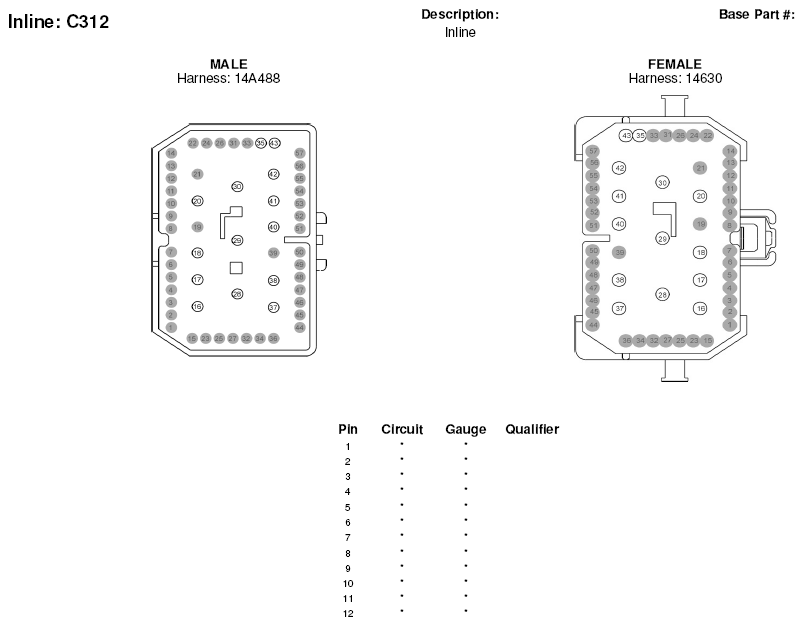

Fig 8: Inline Connector End View (C312) (1 Of 2)

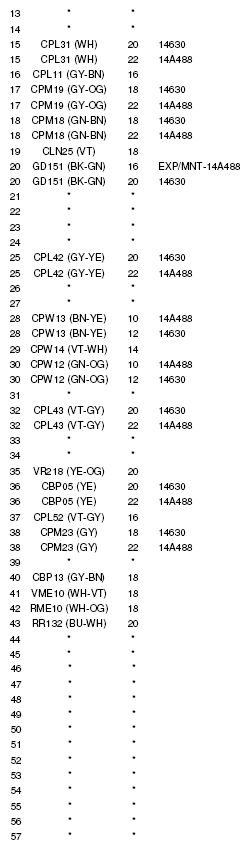

Fig 9: Inline Connector End View (C312) (2 Of 2)

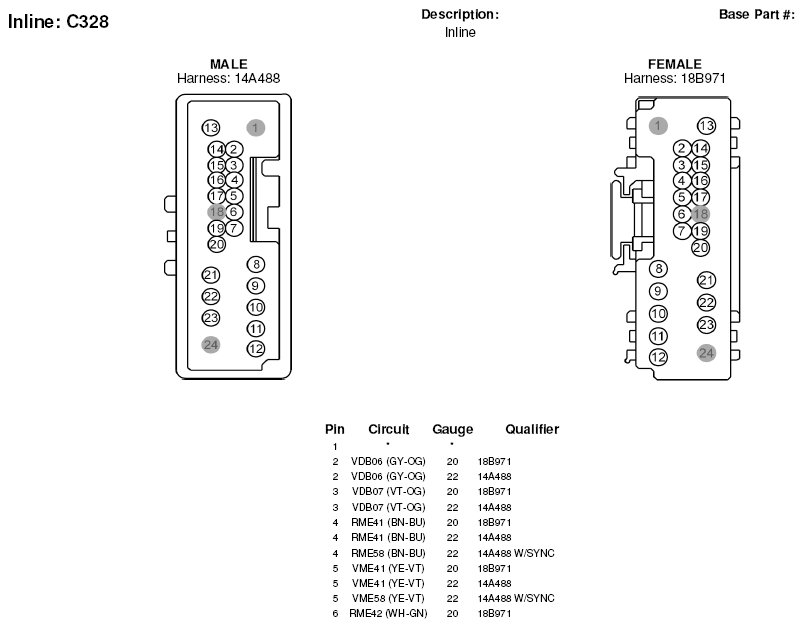

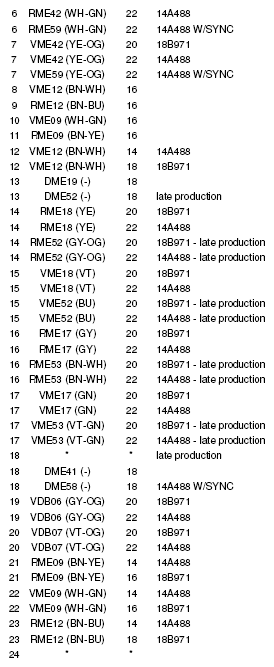

Fig 10: Inline Connector End View (C328) (1 Of 2)

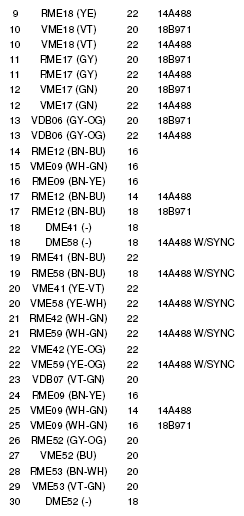

Fig 11: Inline Connector End View (C328) (2 Of 2)

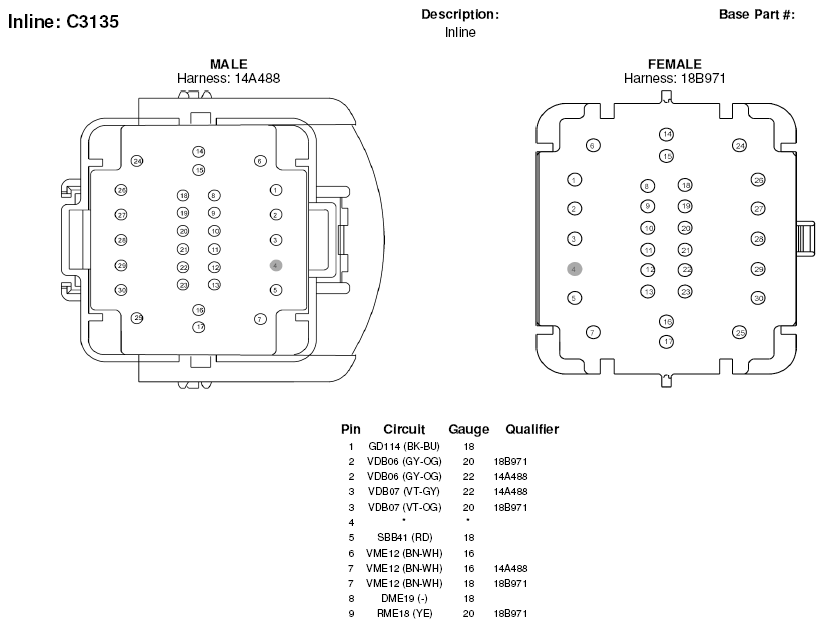

Fig 12: Inline Connector End View (C3135) (1 Of 2)

Fig 13: Inline Connector End View (C3135) (2 Of 2)
