Liftgate Glass Release Switch Connector

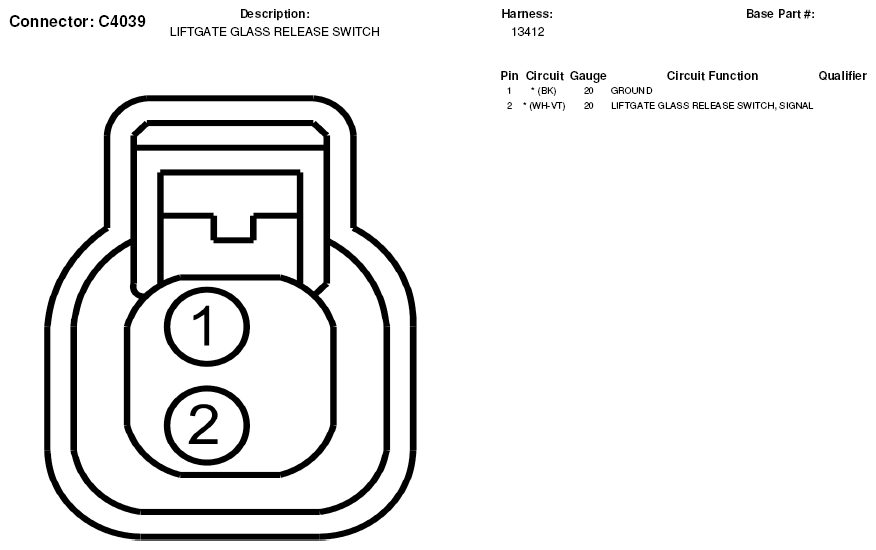

Fig 1: Liftgate Glass Release Switch Connector End View (C4039)

G05600105
