Auxiliary Relay Box 2

NOTE: For component location, see ELECTRICAL COMPONENT LOCATOR article.

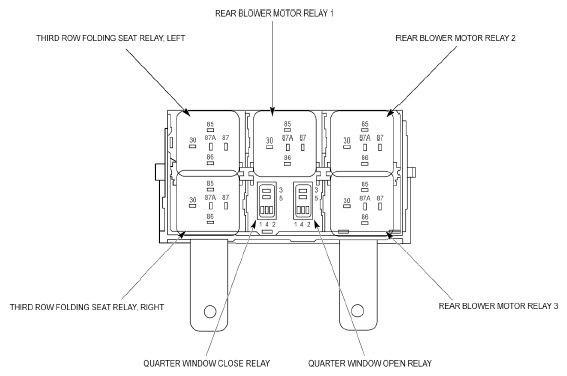

Fig 1: Auxiliary Relay Box 2 Components

Courtesy of FORD MOTOR CO.

AUXILIARY RELAY BOX 2 RELAY IDENTIFICATION

RELAY DESCRIPTION
Third Row Folding Seat Relay, Left
Rear Blower Motor Relay 1
Rear Blower Motor Relay 2
Rear Blower Motor Relay 3
Quarter Window Open Relay
Quarter Window Close Relay
Third Row Folding Seat Relay, Right
