Removal And Installation: Halfshaft: Notes

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Halfshaft Remover	205-832
Courtesy of FORD MOTOR CO.	Slide Hammer	100-001 T50T-100-A

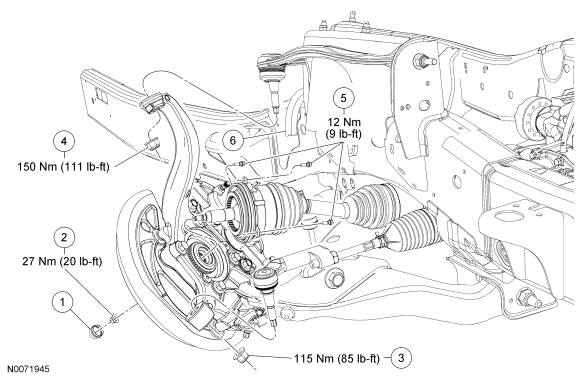

Fig 1: Exploded View Of Halfshaft With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	1131	Dust cap
2	N802827-S	Wheel end nut
3	W520215-S	Tie-rod nut
4	W520215-S	Upper ball joint nut
5	W505211-S	Integrated wheel end (IWE) bolts (3 required)
6	-	Vacuum vent and apply tube
