Home >> Ford >> 2008 >> Expedition EL 4WD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector Views >> Passenger Side Thorax Air Bag Module Connector

Passenger Side Thorax Air Bag Module Connector

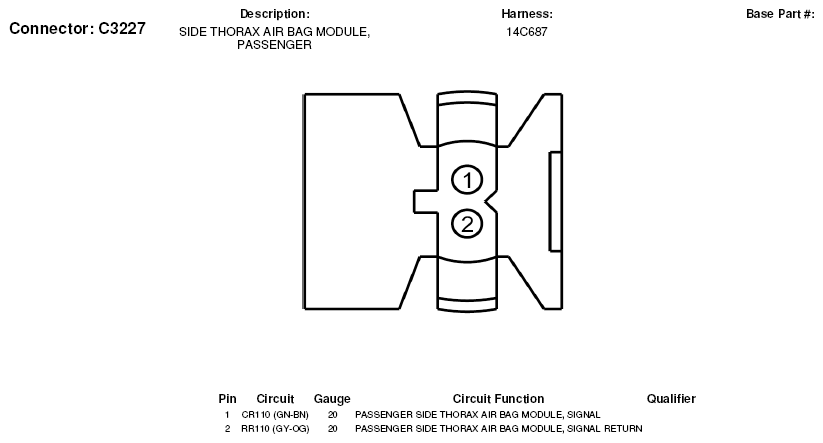

Fig 1: Passenger Side Thorax Air Bag Module Connector End View (C3227)

G05600090
