OEM Connector End Views
>>
Connector Views
>>
Right Steering Wheel Switch Connector
Right Steering Wheel Switch Connector

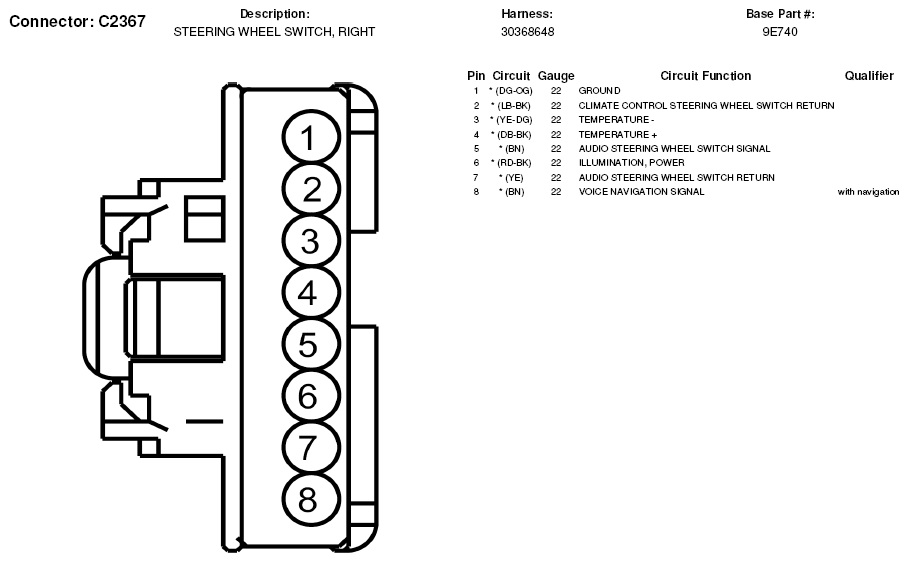

Fig 1: Right Steering Wheel Switch Connector End View (C2367)

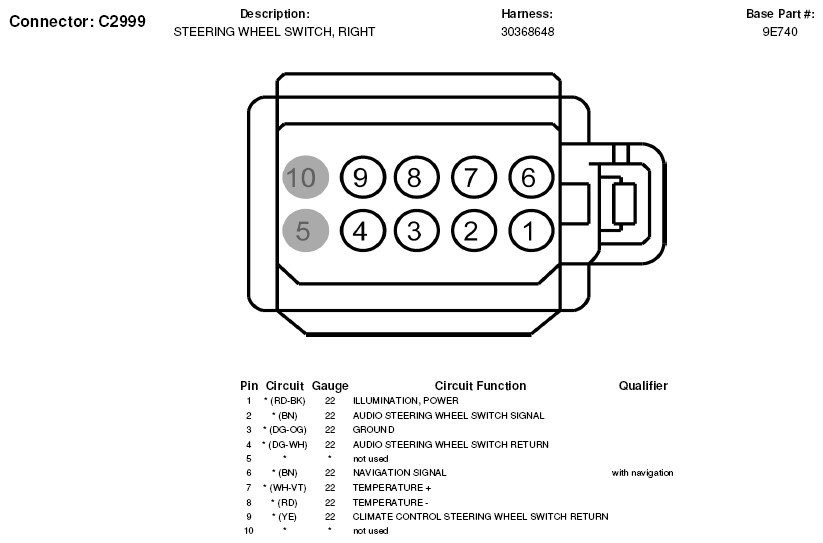

Fig 2: Right Steering Wheel Switch Connector End View (C2999)
