Right Running Board Motor Connector

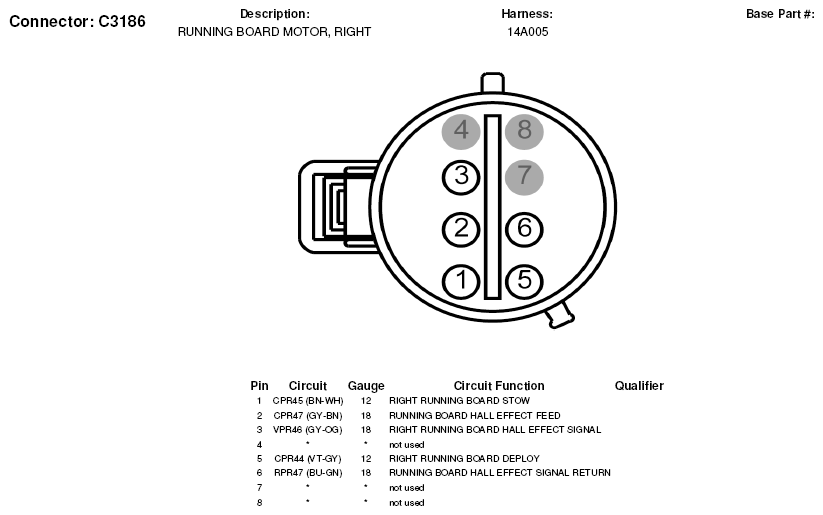

Fig 1: Right Running Board Motor Connector End View (C3186)

G05600081
