Right Rear Height Sensor Connector

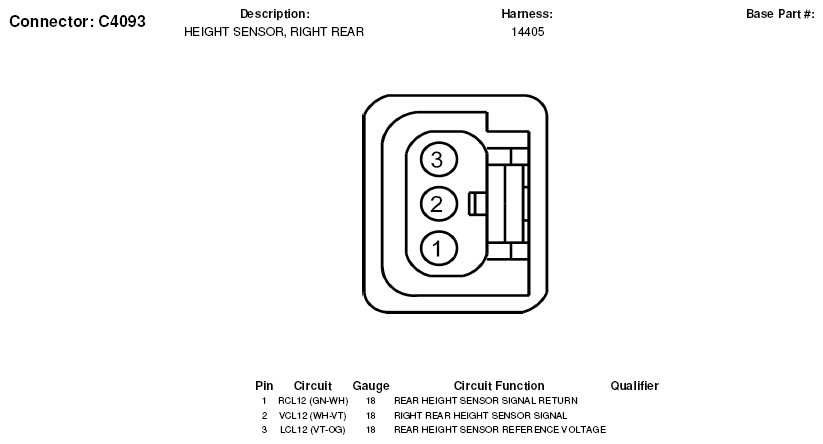

Fig 1: Right Rear Height Sensor Connector End View (C4093)

G05600112
