Right Power Seat Switch Connector
Right Power Seat Switch Connector

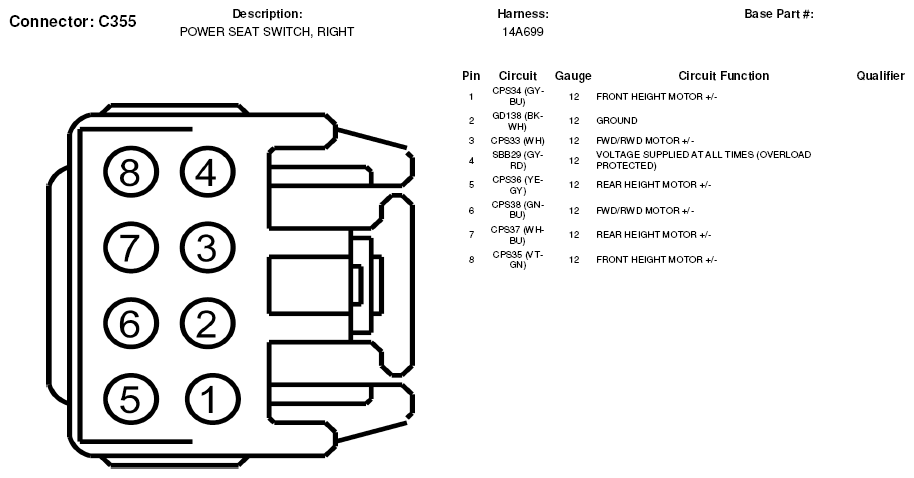

Fig 1: Right Power Seat Switch Connector End View (C355)

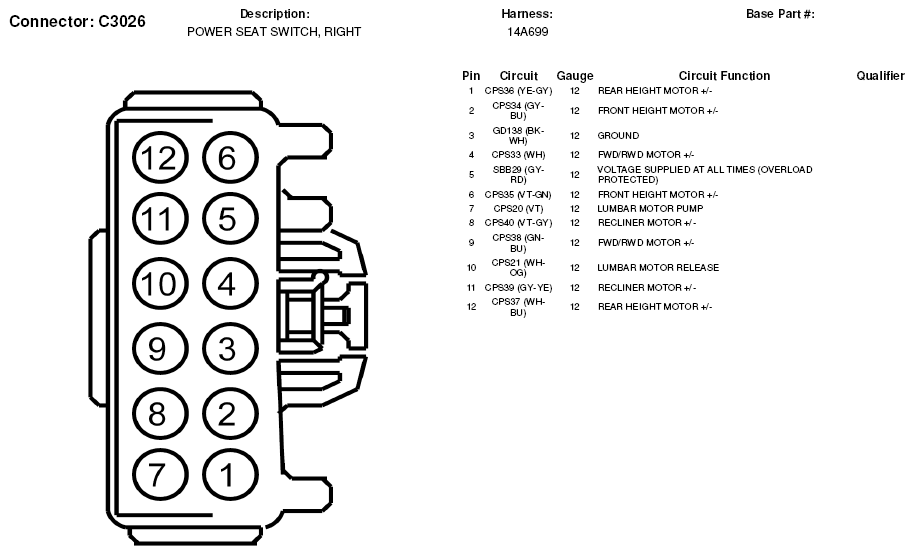

Fig 2: Right Power Seat Switch Connector End View (C3026)
