Rear Video Camera Connector

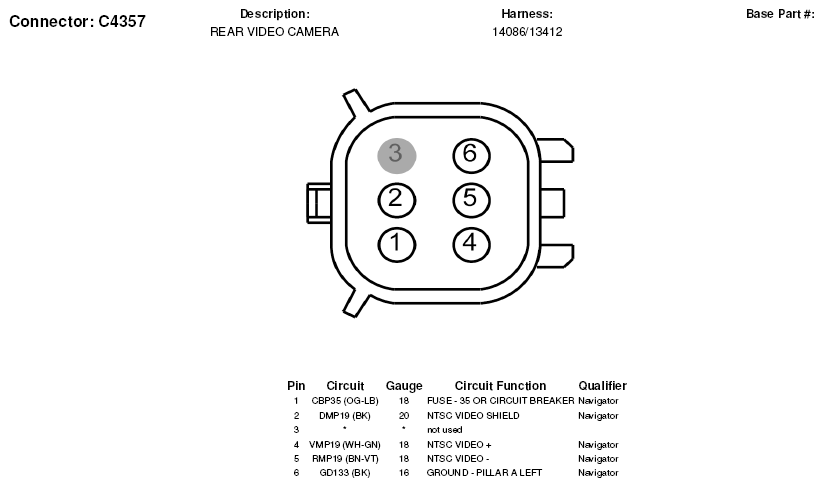

Fig 1: Rear Video Camera Connector End View (C4357)

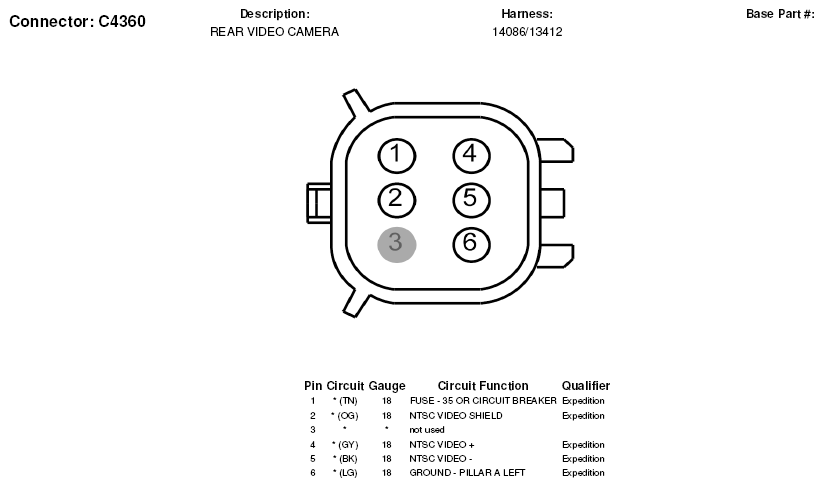

Fig 2: Rear Video Camera Connector End View (C4360)
