Left Steering Wheel Switch Connector

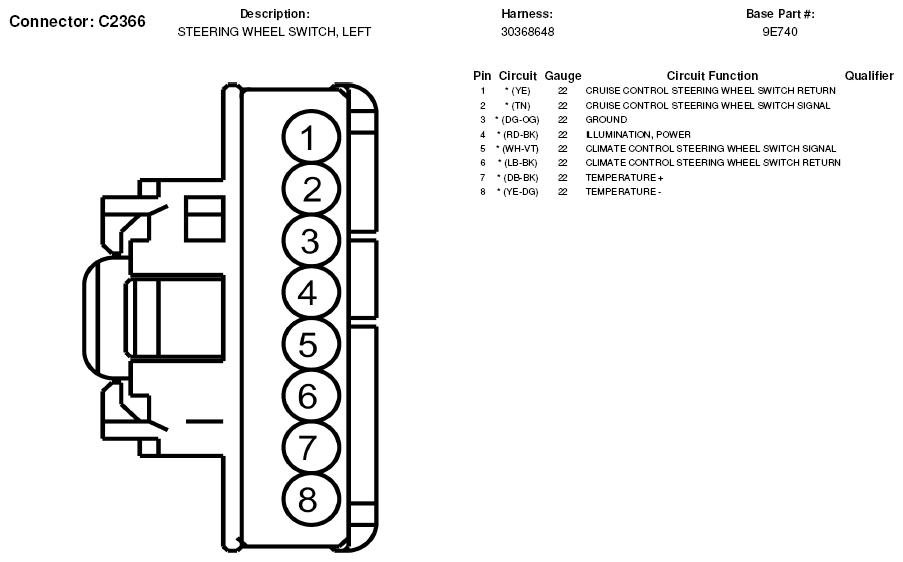

Fig 1: Left Steering Wheel Switch Connector End View (C2366)

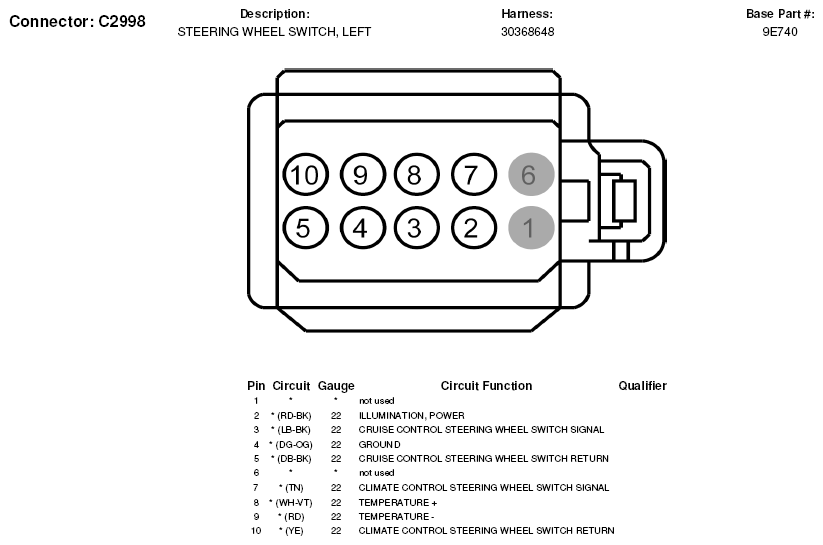

Fig 2: Left Steering Wheel Switch Connector End View (C2998)
