Left Front Speaker Connector

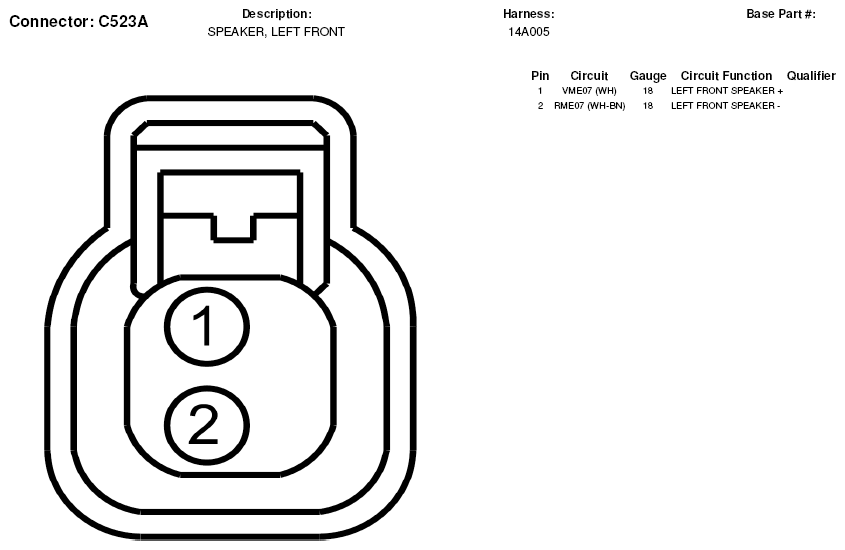

Fig 1: Left Front Speaker Connector End View (C523A)

G05599924

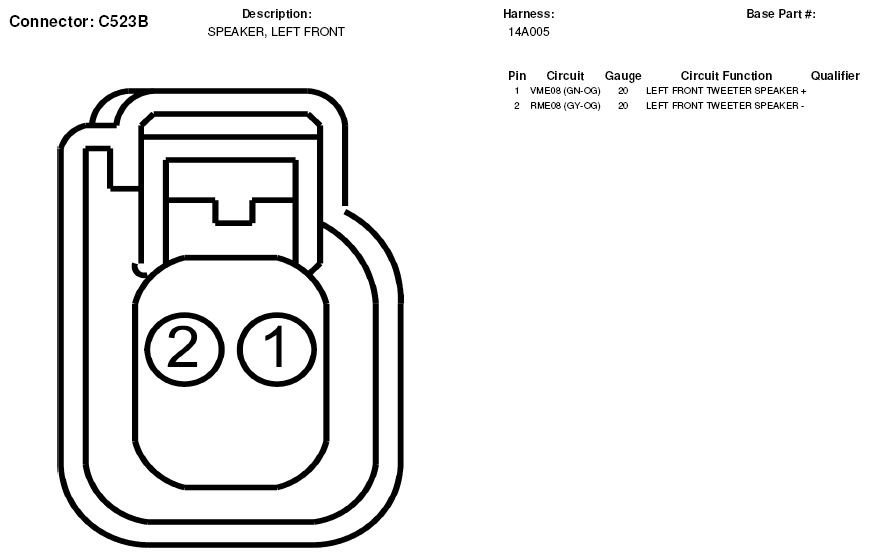

Fig 2: Left Front Speaker Connector End View (C523B)

G05599925

Fig 3: Left Front Speaker Connector End View (C570)

G05599933
