Fuel Injector Connectors

Fig 1: Fuel Injector 1 Connector End View (C181)
G05599800
Fig 2: Fuel Injector 2 Connector End View (C182)
G05599801
Fig 3: Fuel Injector 3 Connector End View (C183)
G05599802

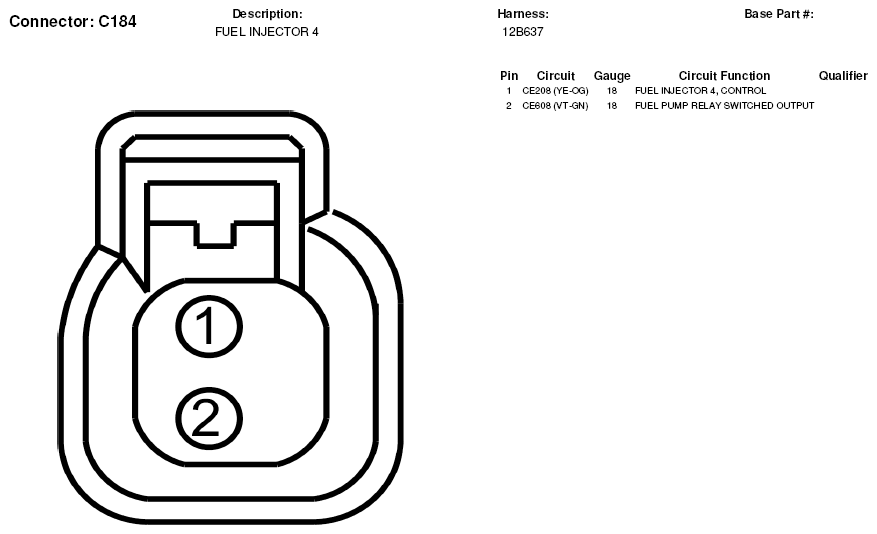

Fig 4: Fuel Injector 4 Connector End View (C184)
G05599803
Fig 5: Fuel Injector 5 Connector End View (C185)
G05599804

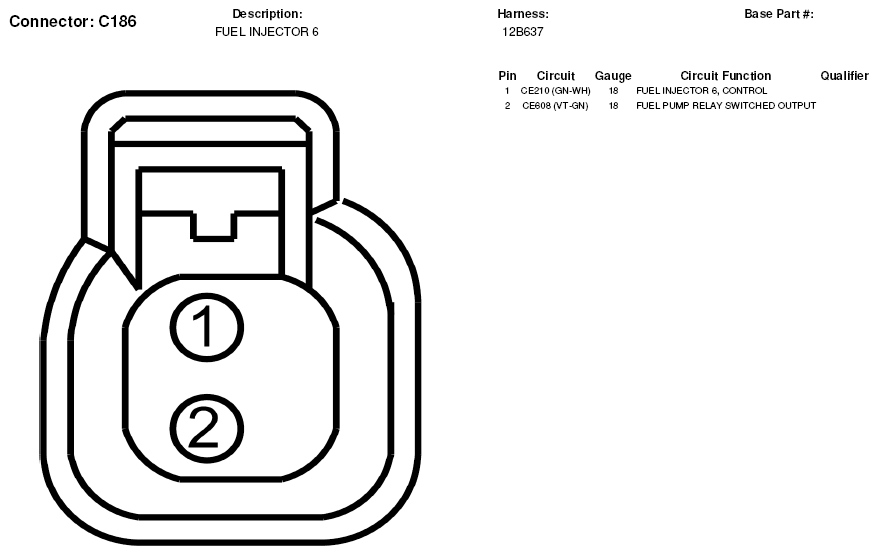

Fig 6: Fuel Injector 6 Connector End View (C186)
G05599805
Fig 7: Fuel Injector 7 Connector End View (C187)
G05599806
Fig 8: Fuel Injector 8 Connector End View (C188)
G05599807
