Battery Connectors

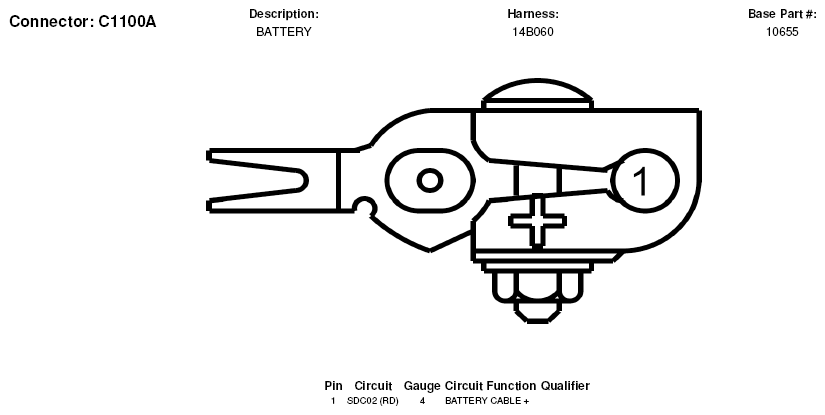

Fig 1: Battery Connector End View (C1100A)

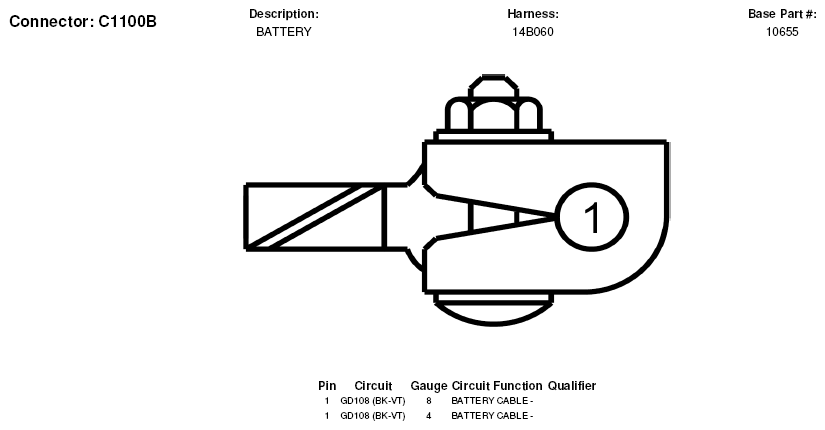

Fig 2: Battery Connector End View (C1100B)

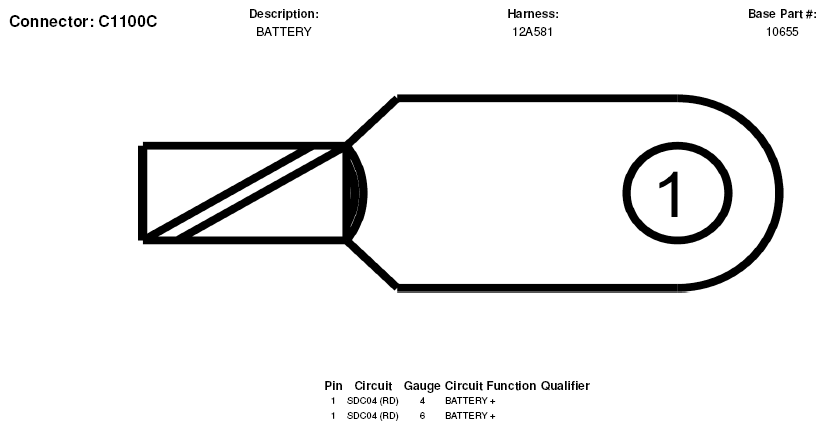

Fig 3: Battery Connector End View (C1100C)

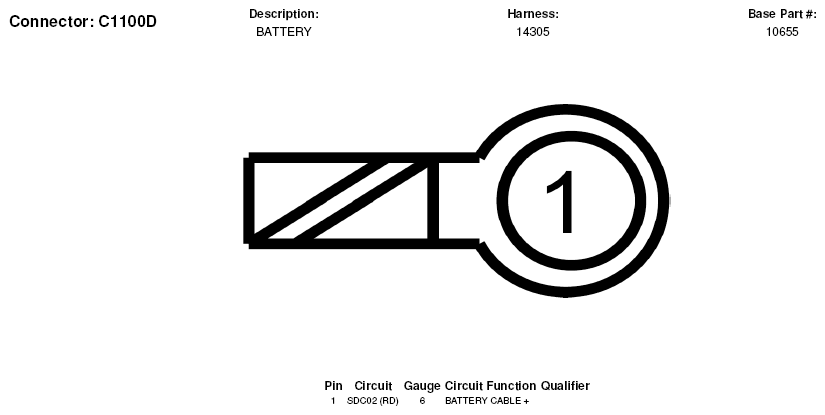

Fig 4: Battery Connector End View (C1100D)
