Console - Overhead: Notes

NOTE: Overhead console with roof opening panel shown, all others similar.

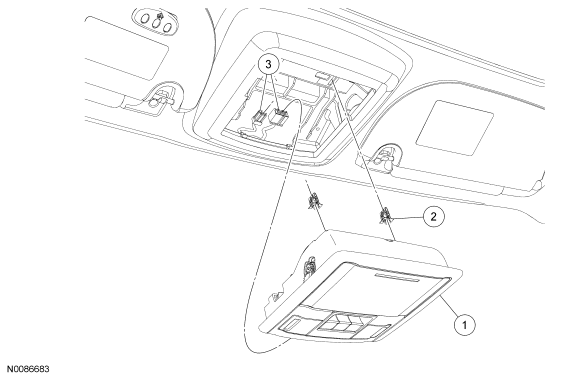

Fig 1: Exploded View Of Overhead Console
GF0046840Courtesy of FORD MOTOR CO.
Item Part Number Description
1 519A70 Overhead console
2 - Retaining clip
3 14335 Overhead console electrical connector
