Differential - Front Wheel Drive (FWD): Notes

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	2-Jaw Puller	205-D035 or equivalent
Courtesy of FORD MOTOR CO.	Bearing Puller	205-D064 or equivalent
Courtesy of FORD MOTOR CO.	Dial Indicator Gauge with Holding Fixture	100-D002 or equivalent

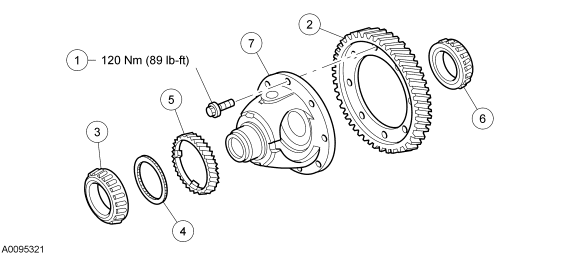

Fig 1: Exploded View Of Front Wheel Drive FWD Differential With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	99784	Final drive gear bolt (10 required)
2	7F343	Final drive gear
3	3N305	Differential side bearing
4	7N112	Spacer
5	17285	Vehicle speed sensor (VSS) drive gear
6	3N305	Differential side bearing
7	4026	Differential case assembly
