Right Steering Wheel Switch Connector

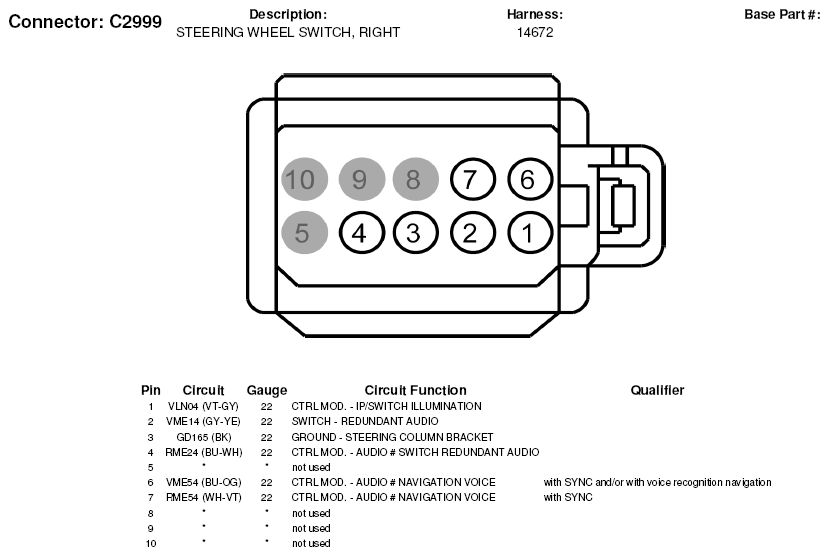

Fig 1: Right Steering Wheel Switch Connector End View (C2999)

G05599025
