Right Reversing Lamp Connector
Right Reversing Lamp Connector

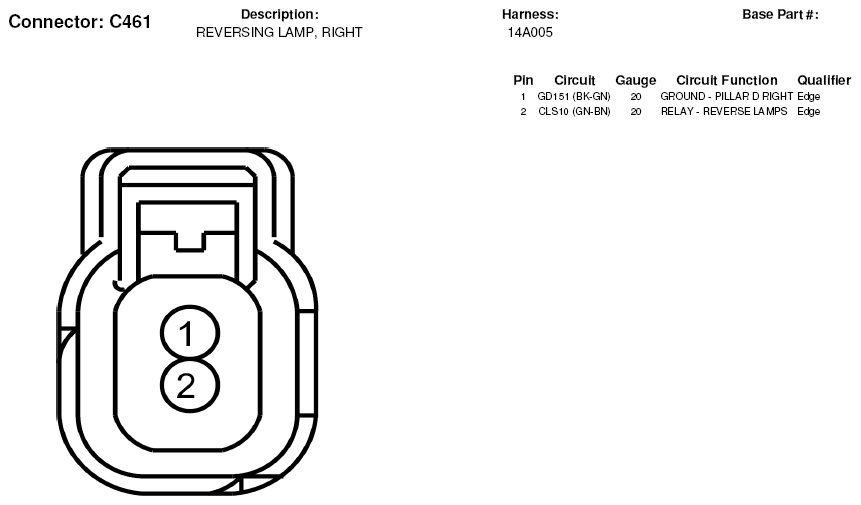

Fig 1: Right Reversing Lamp Connector End View (C461)

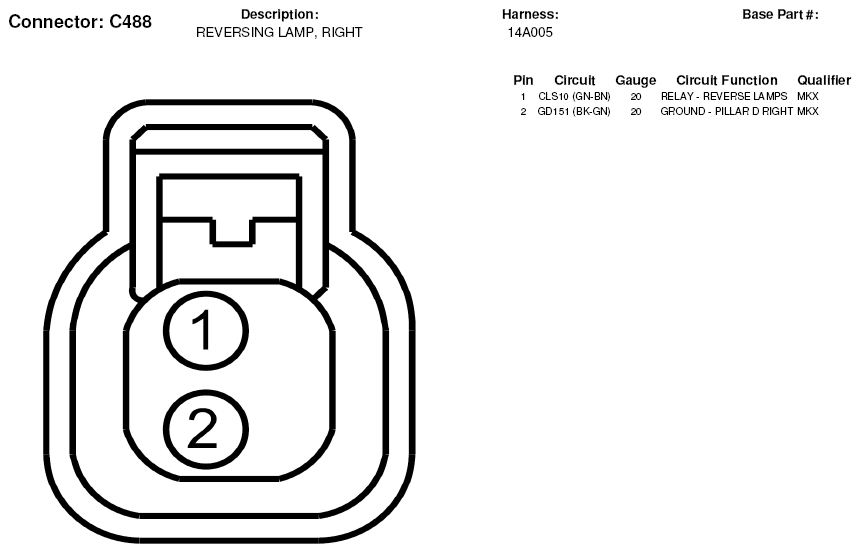

Fig 2: Right Reversing Lamp Connector End View (C488)
