Passenger Side Front Power Window Motor Connector

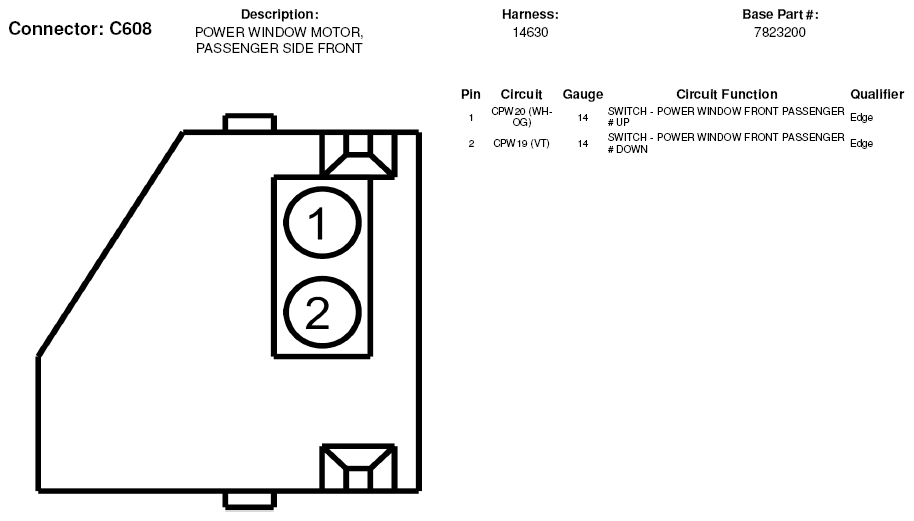

Fig 1: Passenger Side Front Power Window Motor Connector End View (C608)
G05598930

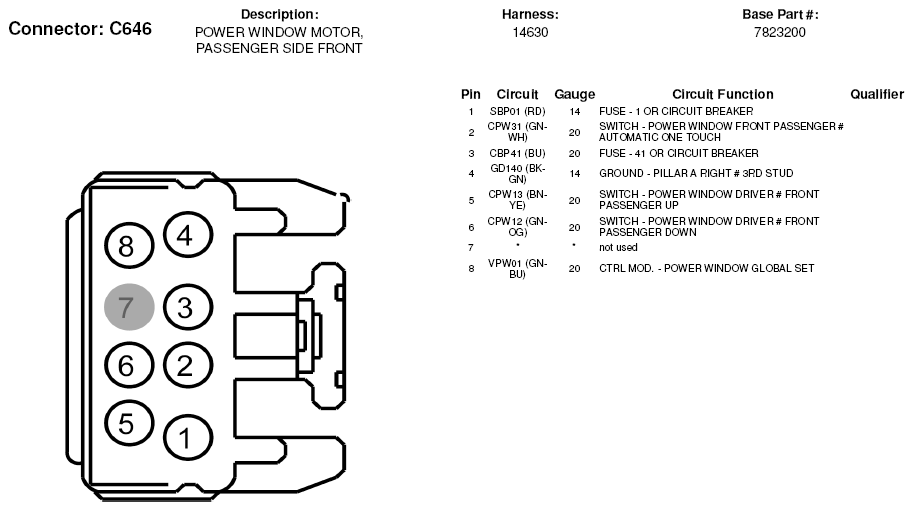

Fig 2: Passenger Side Front Power Window Motor Connector End View (C646)
G05598939
