Left Headlamp Connector

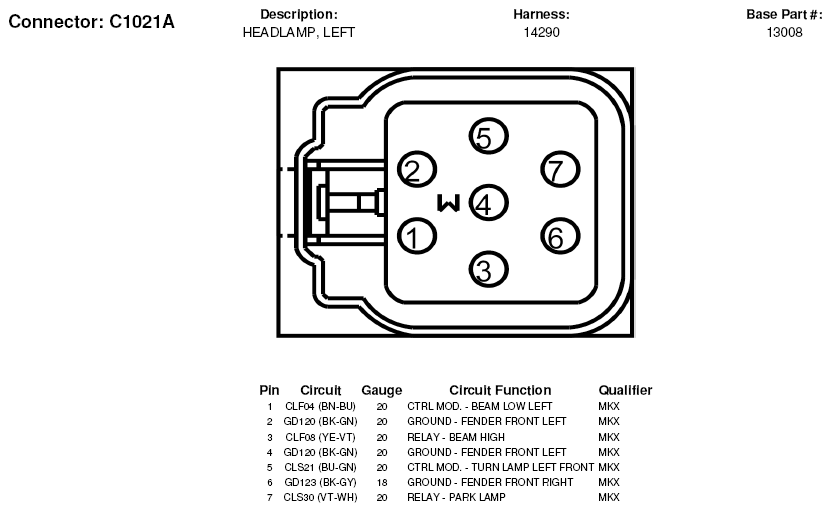

Fig 1: Left Headlamp Connector End View (C1021A)

G05598969

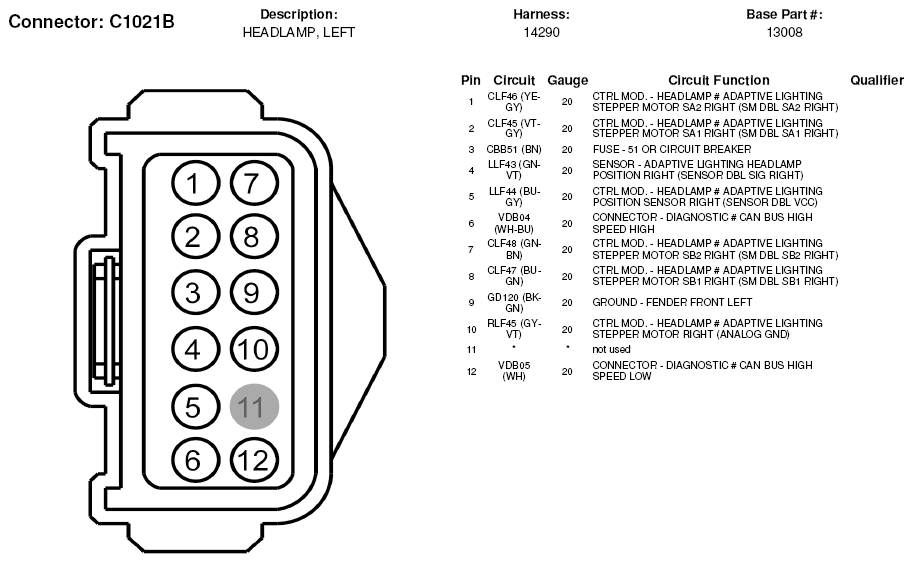

Fig 2: Left Headlamp Connector End View (C1021B)

G05598970
