Inner Left Parking Aid Sensor Connector

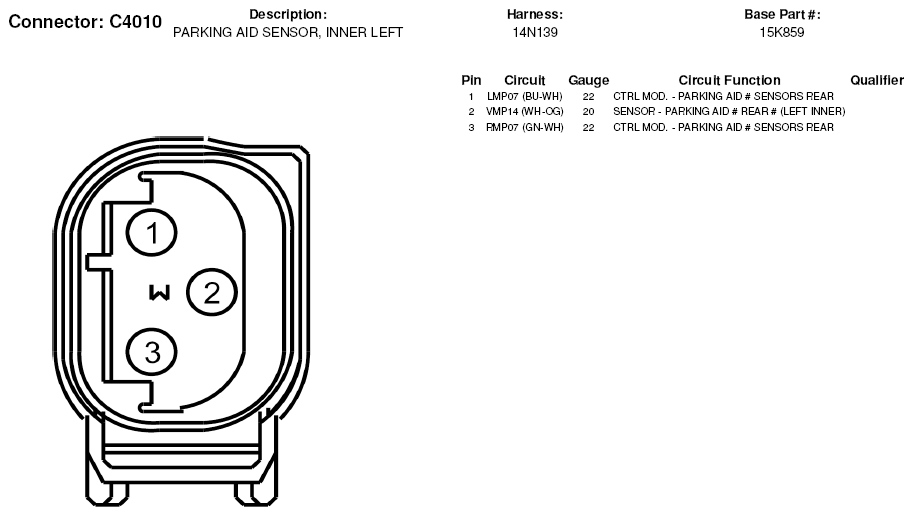

Fig 1: Inner Left Parking Aid Sensor Connector End View (C4010)

G05599078
