Driver Seat Backrest Motor Connector

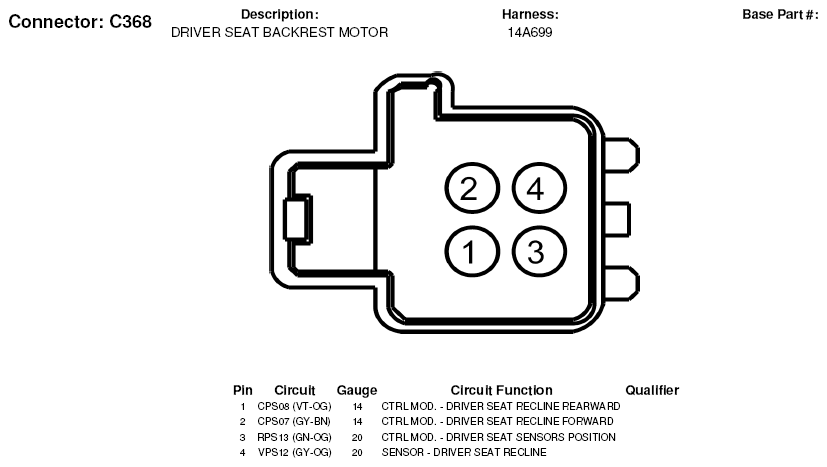

Fig 1: Driver Seat Backrest Motor Connector End View (C368)

G05598887
