Brake Pedal Position Switch Connector

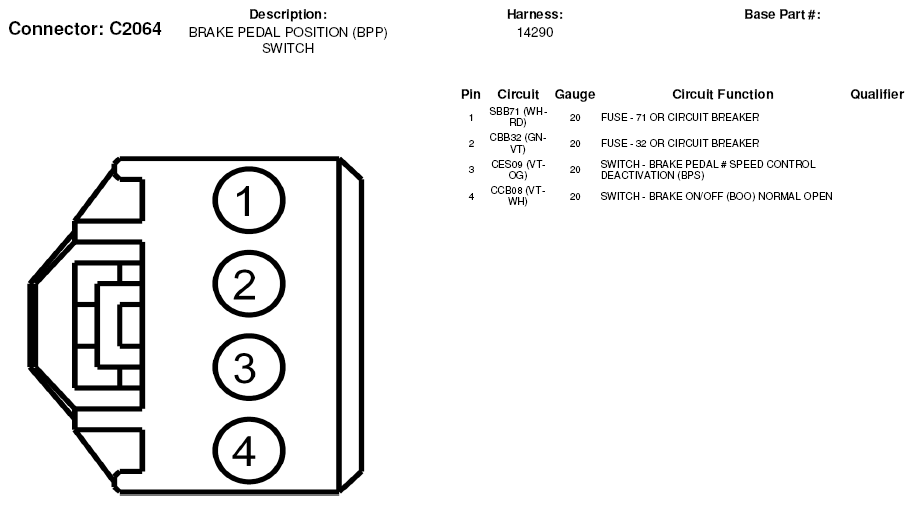

Fig 1: Brake Pedal Position Switch Connector End View (C2064)

G05598998
