Battery Connectors

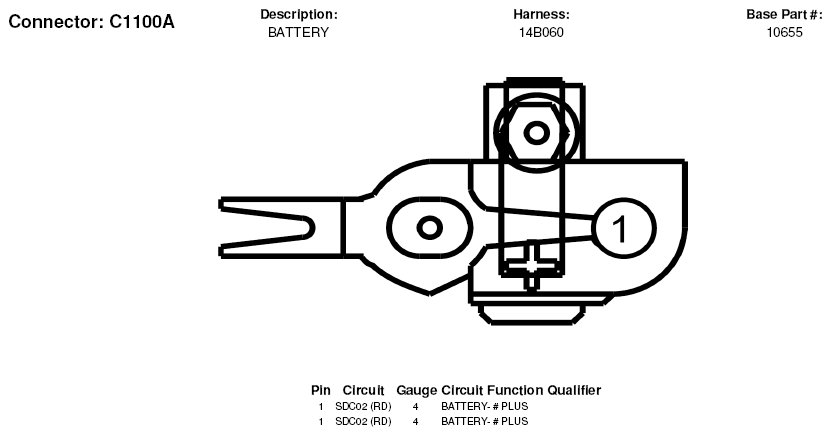

Fig 1: Battery Connector End View (C1100A)

G05598978

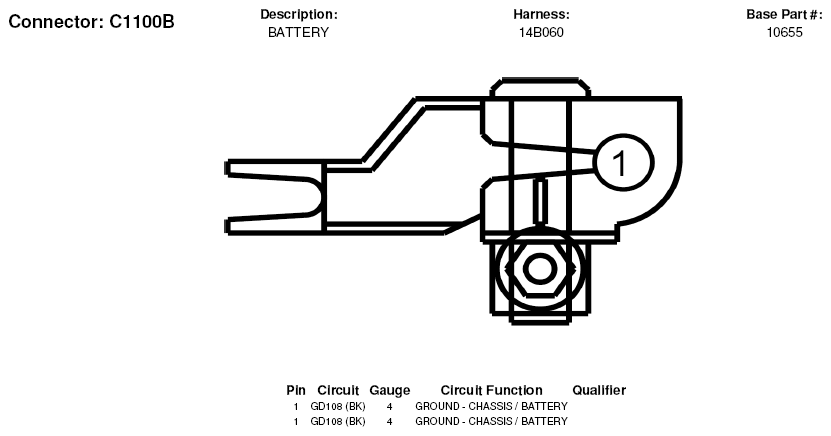

Fig 2: Battery Connector End View (C1100B)

G05598979

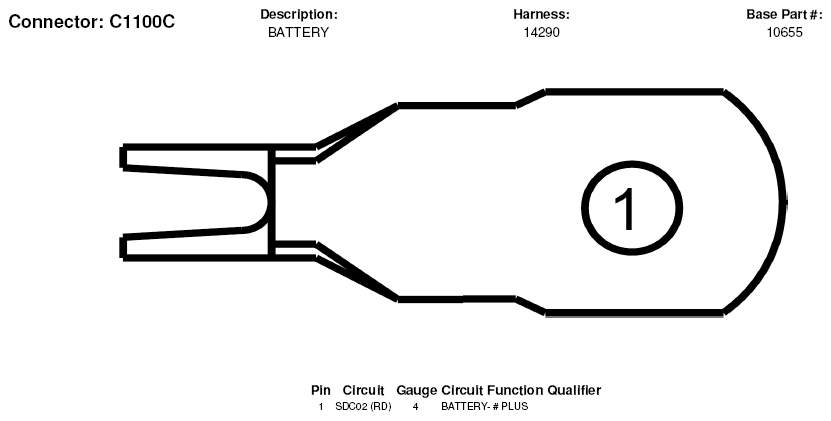

Fig 3: Battery Connector End View (C1100C)

G05598980
