Right Front Tweeter Connector
Right Front Tweeter Connector

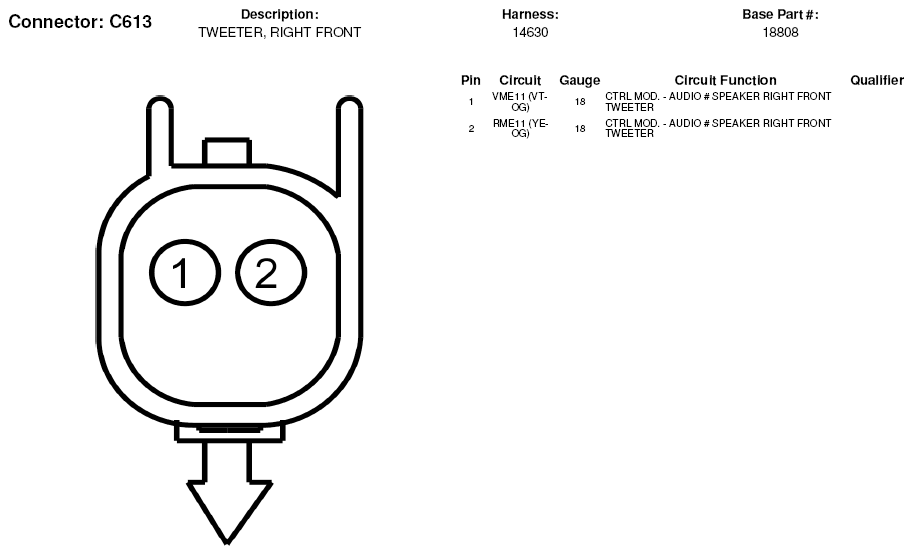

Fig 1: Right Front Tweeter Connector End View (C613)
