Left Front Side Air Bag Module Connector

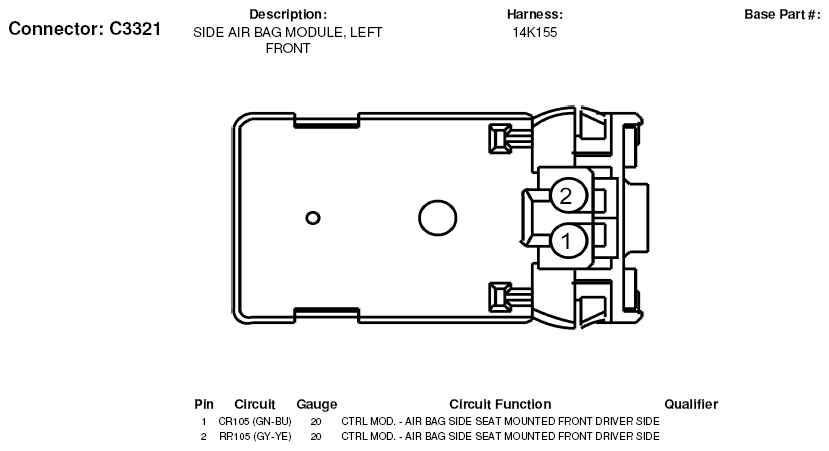

Fig 1: Left Front Side Air Bag Module Connector End View (C3321)

G05599058
