Left Front Seat Track Position Sensor Connector

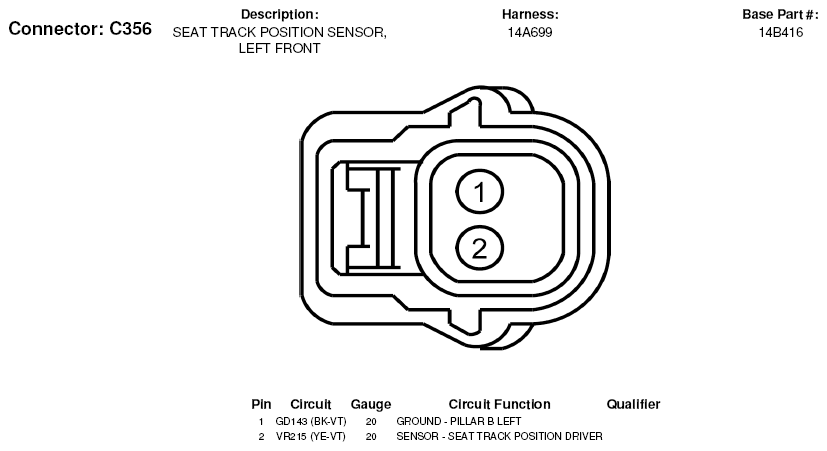

Fig 1: Left Front Seat Track Position Sensor Connector End View (C356)

G05598884
