Home >> Ford >> 2008 >> Edge SE, AWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector Views >> Cargo Area Power Point Connector

Cargo Area Power Point Connector

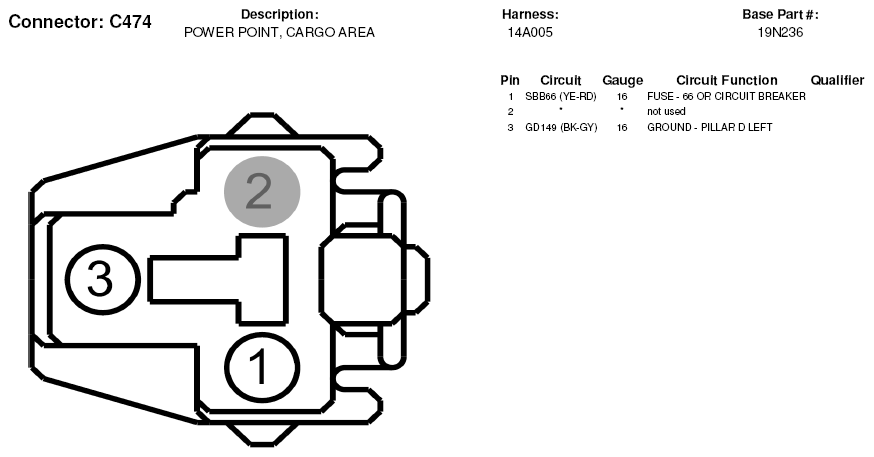

Fig 1: Cargo Area Power Point Connector End View (C474)

G05598906
