Power Liftgate Release Switch Connector

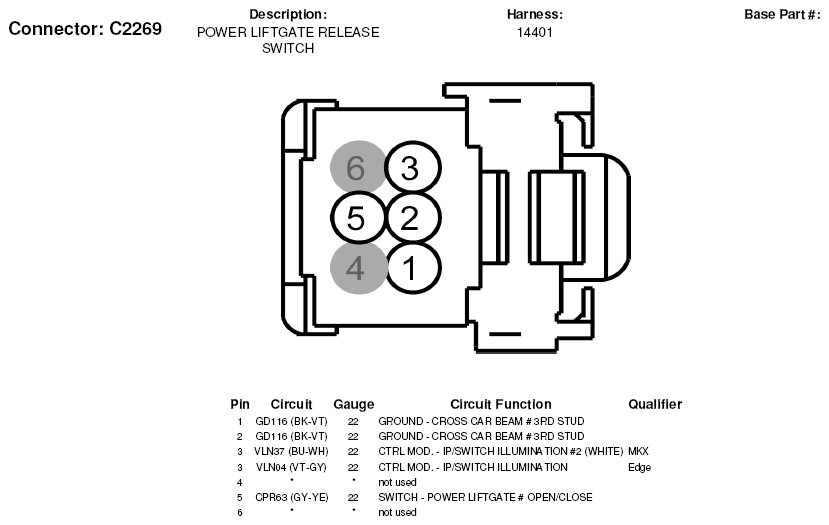

Fig 1: Power Liftgate Release Switch Connector End View (C2269)

G05599005
