Driver Side Air Curtain Module Connector

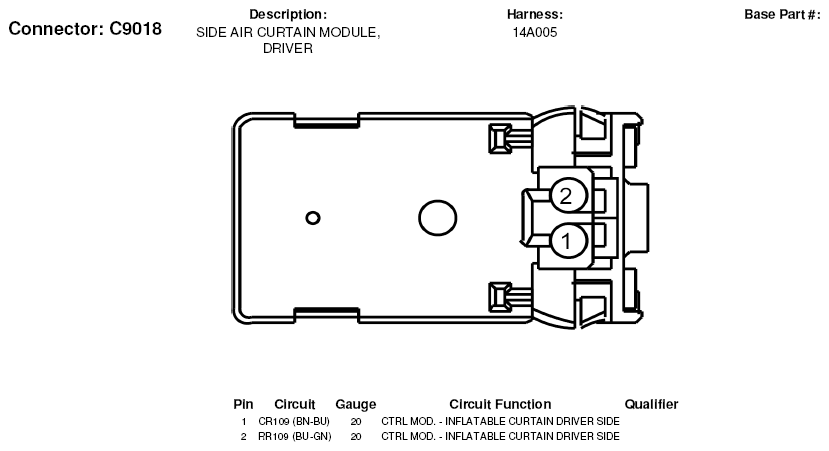

Fig 1: Driver Side Air Curtain Module Connector End View (C9018)

G05599111
