Home >> Ford >> 2008 >> Edge Limited, AWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector Views >> Left Rear Window Adjust Switch Connector

Left Rear Window Adjust Switch Connector

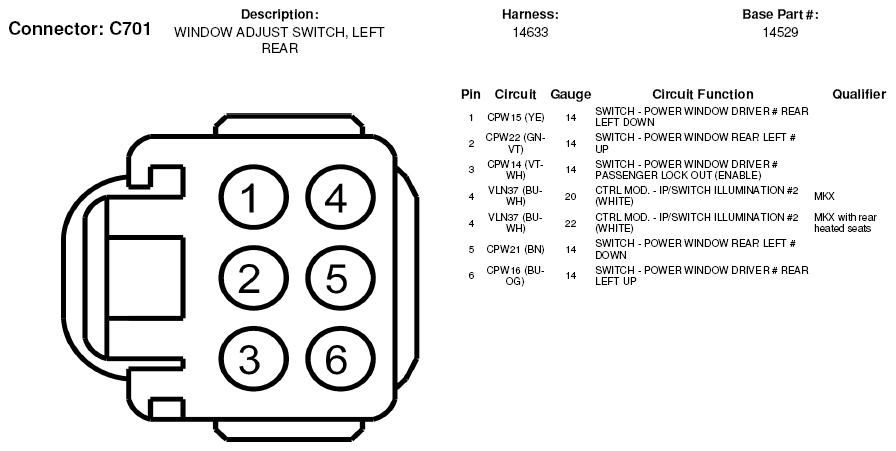

Fig 1: Left Rear Window Adjust Switch Connector End View (C701)

G05598942
