Left Rear Heated Seat Module Connector

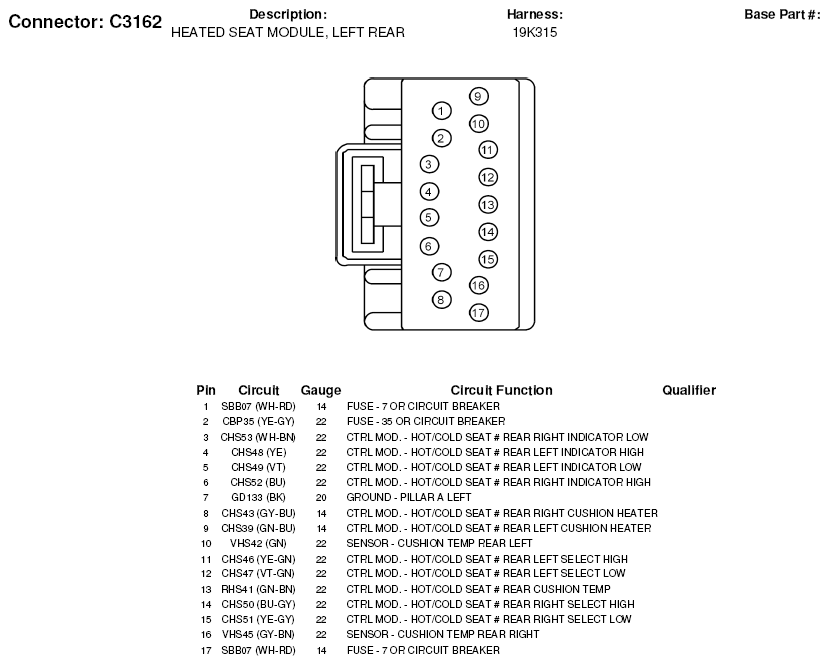

Fig 1: Left Rear Heated Seat Module Connector End View (C3162)

G05599039
