Driver Side Door Lock Switch Connector

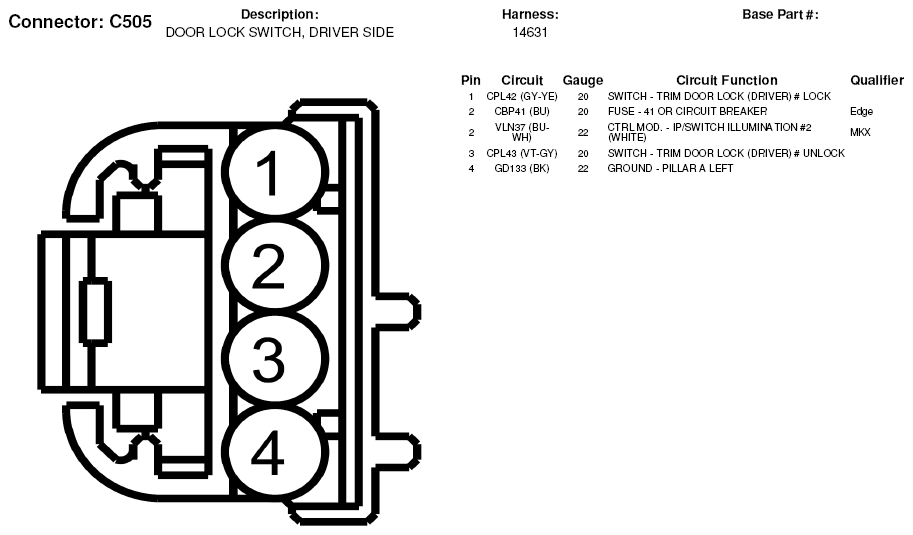

Fig 1: Driver Side Door Lock Switch Connector End View (C505)

G05598914
