OEM Connector End Views
>>
Connector Views
>>
Driver Side Climate Controlled Seat Cushion Module Connector
Driver Side Climate Controlled Seat Cushion Module Connector

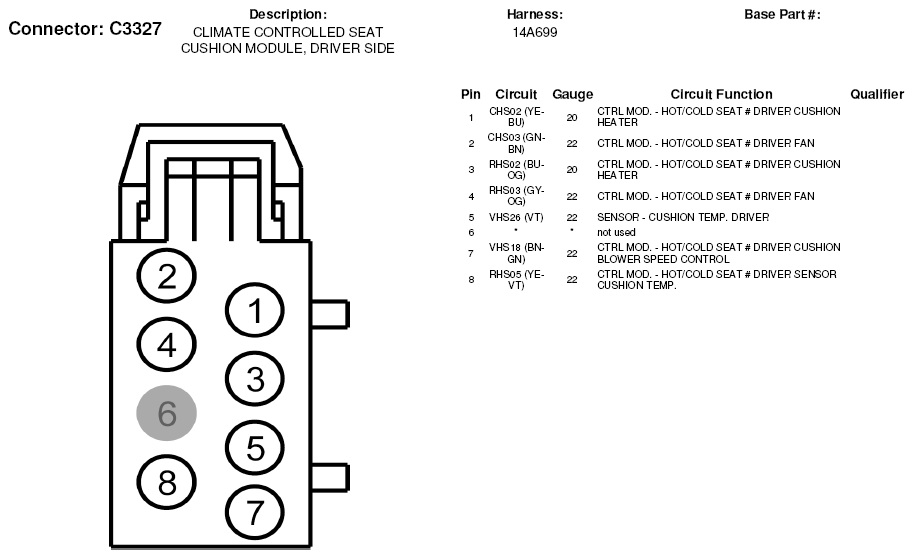

Fig 1: Driver Side Climate Controlled Seat Cushion Module Connector End View (C3327)
