Anti-Lock Brake System Test Connector

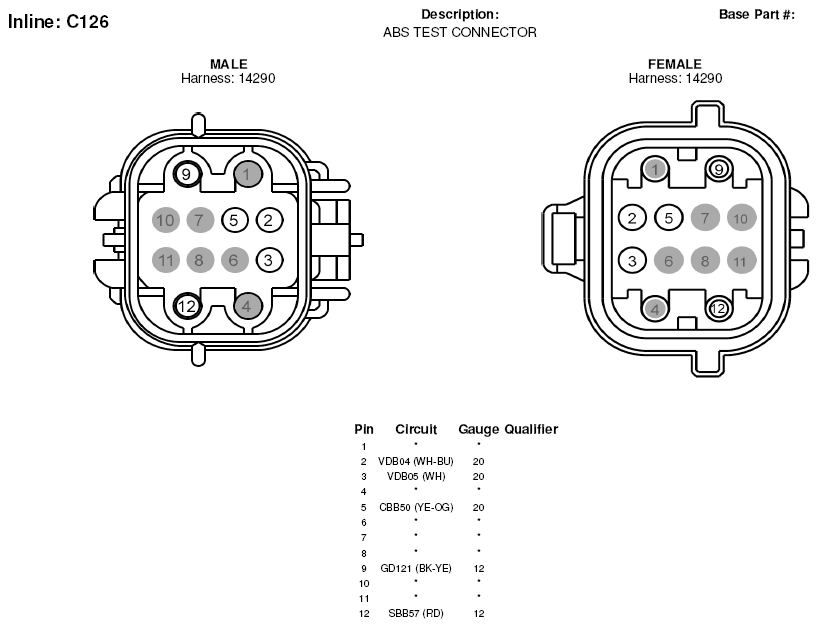

Fig 1: Anti-Lock Brake System Test Connector End View (C126)

G05598788
