Valve Cover - RH: Notes

Material

Item	Specification
Motorcraft Metal Surface Prep ZC-31-A	-
Silicone Gasket and Sealant TA-30	WSE-M4G323-A4
Silicone Gasket Remover ZC-30	-

Fig 1: Valve Cover - RH (View 1 of 4)

GF0013548

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Crankshaft Position (CKP) sensor electrical connector (part of 12B637)
2	14A464	A/C compressor electrical connector (part of 12B637)

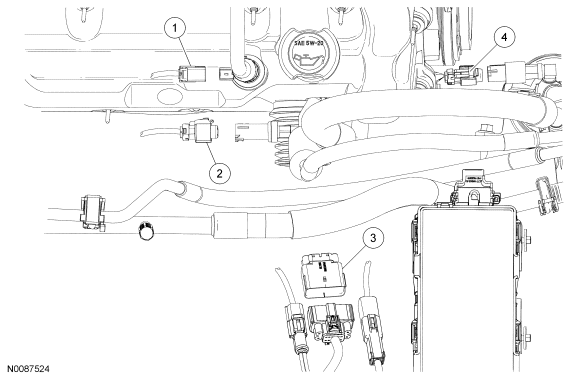

Fig 2: Valve Cover - RH (View 2 of 4)

GF0046672

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	PCV valve electrical connector (part of 12B637)
2	14A464	A/C pressure sensor electrical connector (part of 12B637)
3	14A464	Electronic engine control electrical connector (part of 12B637)
4	14A464	A/C accumulator switch electrical connector (part of 12B637)

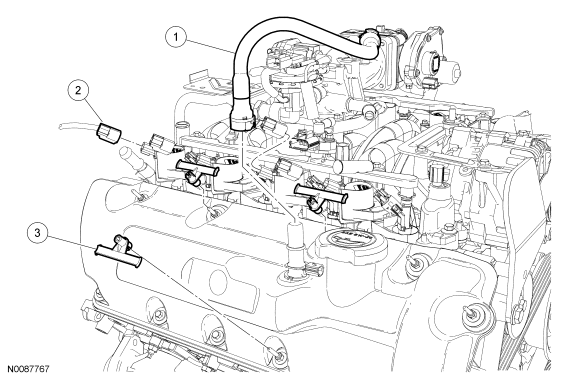

Fig 3: Valve Cover - RH (View 3 of 4)

GF0046673

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	6K817	PCV tube
2	14A464	Ignition coil electrical connector (4 required) (part of 12B637)
3	14A163	Engine wire harness retainer (3 required) (part of 12B637)

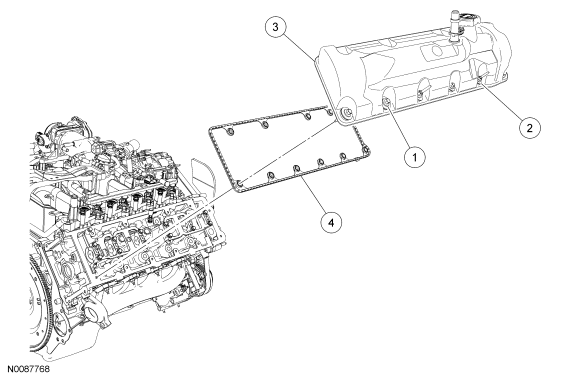

Fig 4: Valve Cover - RH (View 4 of 4)

GF0046674

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N806183	RH valve cover bolt (3 required)
2	W705644	RH valve cover stud bolt (8 required)
3	6582	RH valve cover
4	6584	RH valve cover gasket
