Valve Cover - LH: Notes
Material
| Item | Specification |
|---|---|
| Motorcraft Metal Surface Prep ZC-31-A |
- |
| Silicone Gasket and Sealant TA-30 |
WSE-M4G323-A4 |
| Silicone Gasket Remover ZC-30 |
- |

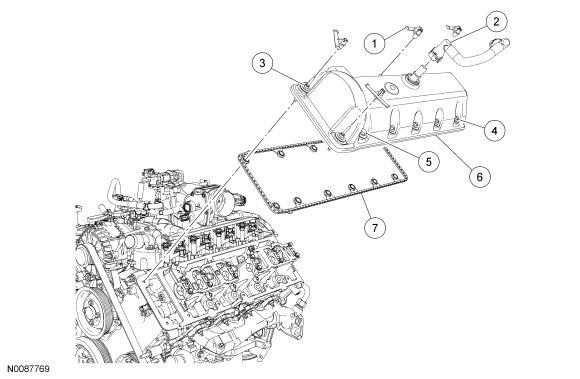

| Item | Part Number | Description |
|---|---|---|
| 1 | 13A506 | Wire harness retainer (part of 12B637) (4 required) |
| 2 | 6758 | Crankcase ventilation tube |
| 3 | W705644 | Valve cover stud bolt (5 required) |
| 4 | N806183 | Valve cover bolt (6 required) |
| 5 | W705787 | Valve cover bolt |
| 6 | 6A505 | LH valve cover |
| 7 | 6A559 | LH valve cover gasket |
