Wig-Wag Module Connector
Wig-Wag Module Connector

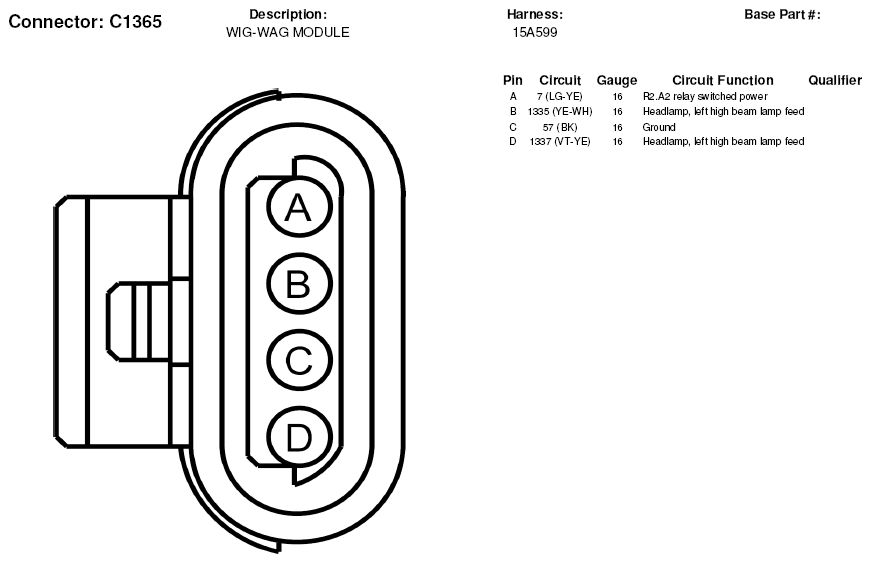

Fig 1: Wig-Wag Module Connector End View (C1365)
Courtesy of FORD MOTOR CO.
