Transmission Control Switch Connector

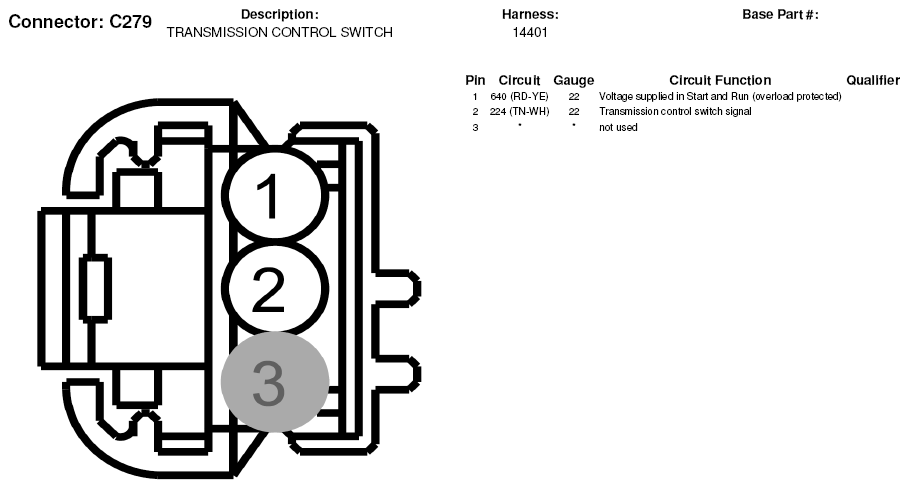

Fig 1: Transmission Control Switch Connector End View (C279)

G05600277

Courtesy of FORD MOTOR CO.
