Strobe/Light Bar Control Switch Connector

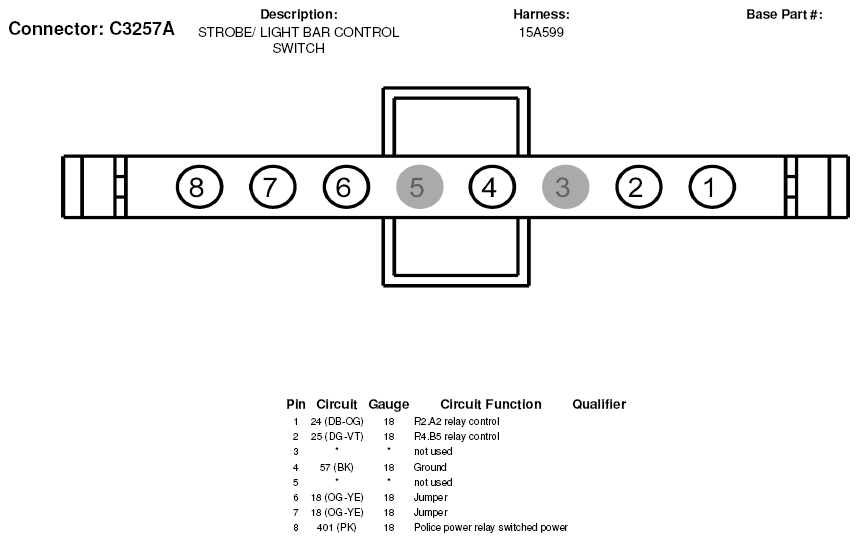

Fig 1: Strobe/Light Bar Control Switch Connector End View (C3257A)

G05600478

Courtesy of FORD MOTOR CO.
