Passive Anti-Theft System Transceiver Connector

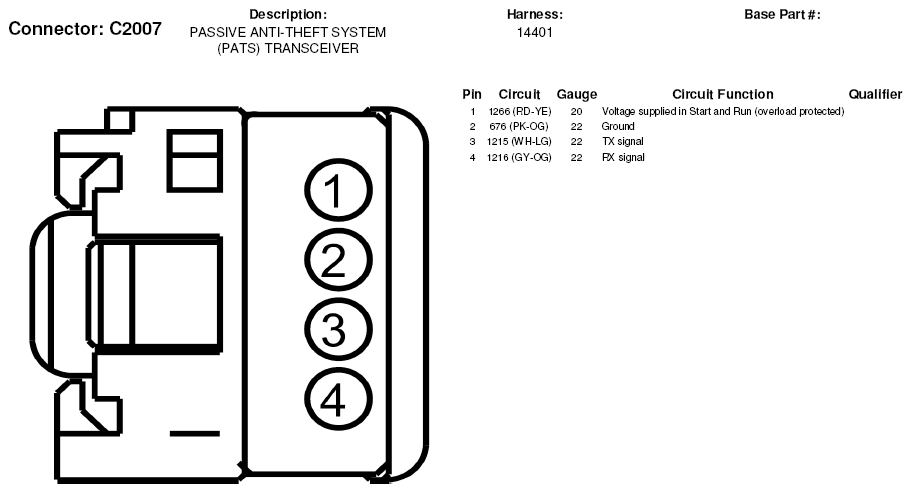

Fig 1: Passive Anti-Theft System Transceiver Connector End View (C2007)

G05600443

Courtesy of FORD MOTOR CO.
