Multifunction Switch Connectors

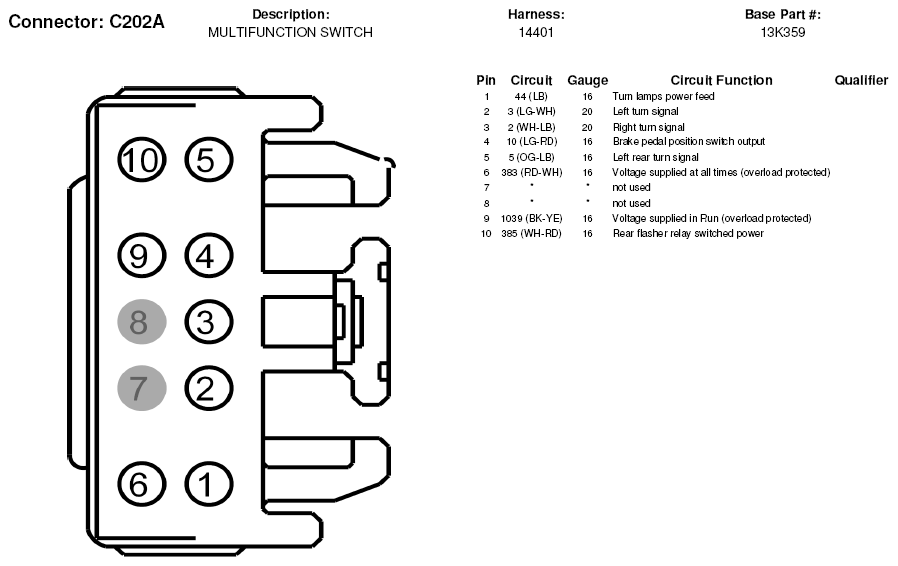

Fig 1: Multifunction Switch Connector End View (C202A)
G05600240Courtesy of FORD MOTOR CO.

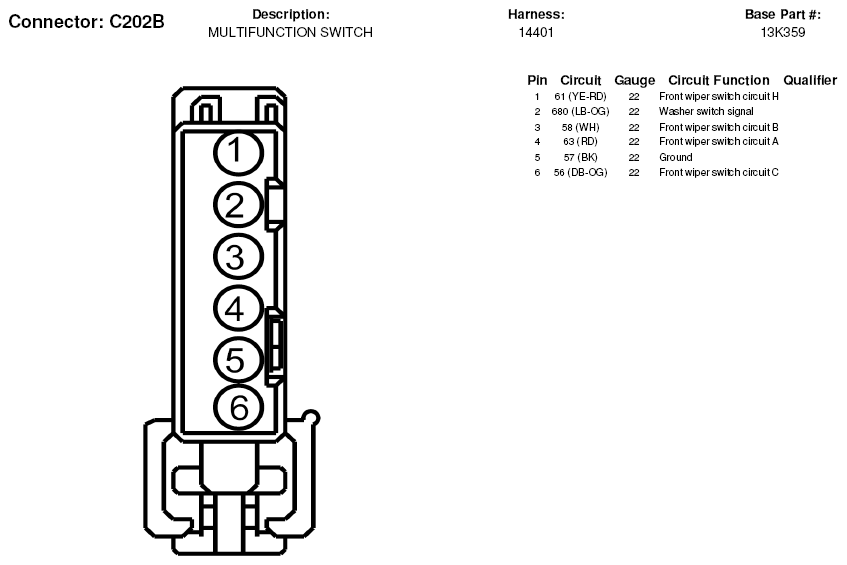

Fig 2: Multifunction Switch Connector End View (C202B)
G05600241Courtesy of FORD MOTOR CO.

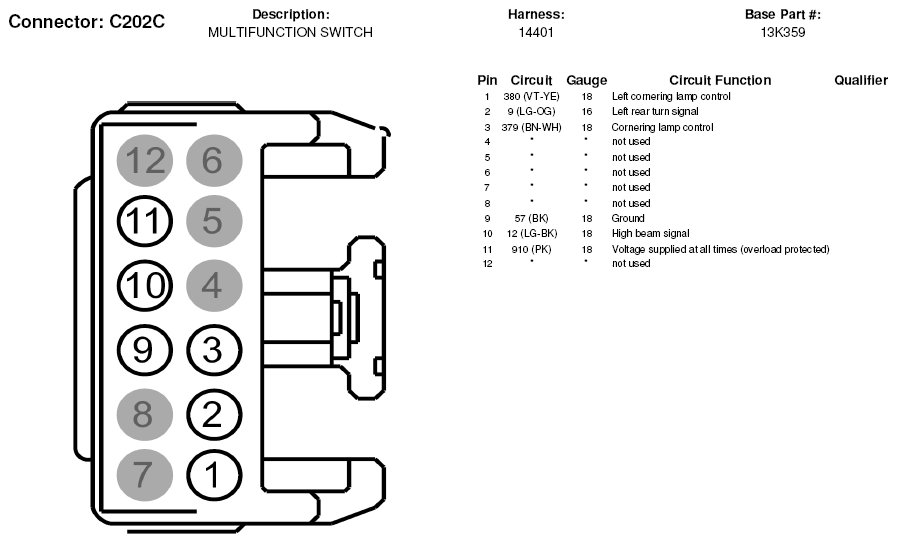

Fig 3: Multifunction Switch Connector End View (C202C)
G05600242Courtesy of FORD MOTOR CO.
