Fire Suppression System Module Connectors
Fire Suppression System Module Connectors

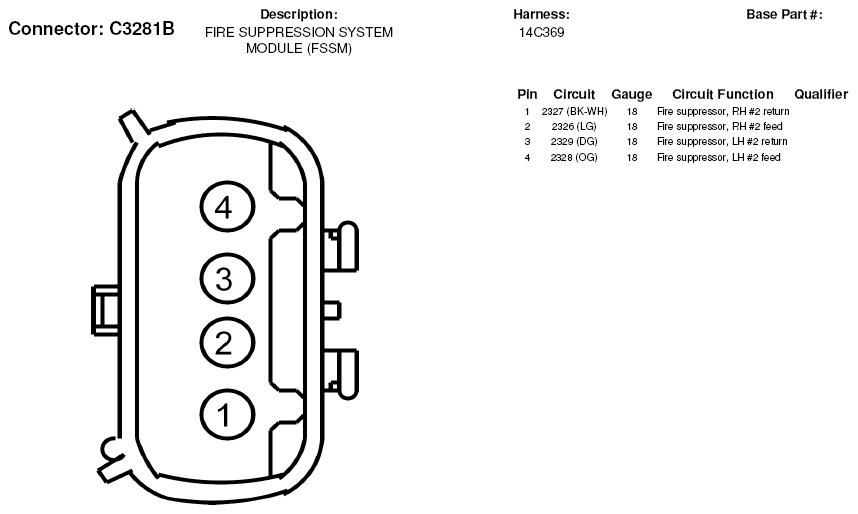

Fig 1: Fire Suppression System Module Connector End View (C3281B)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
