Engine Cooling Fan Module Connector
Engine Cooling Fan Module Connector

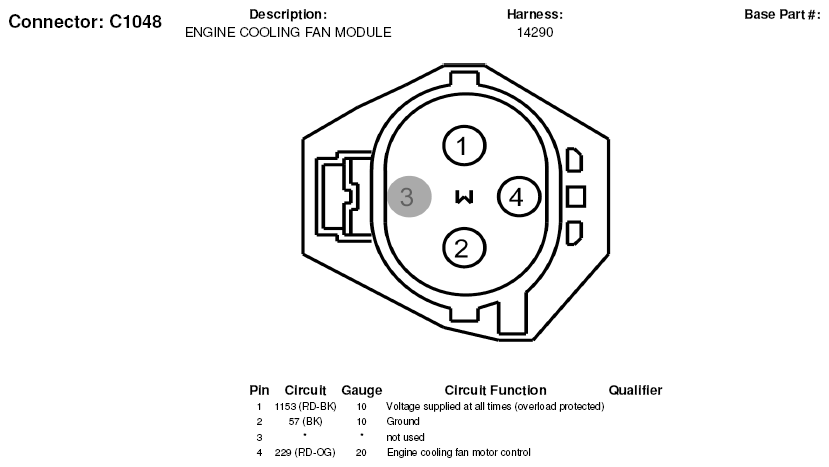

Fig 1: Engine Cooling Fan Module Connector End View (C1048)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
