Driver Side Front Heated Seat Module Connector

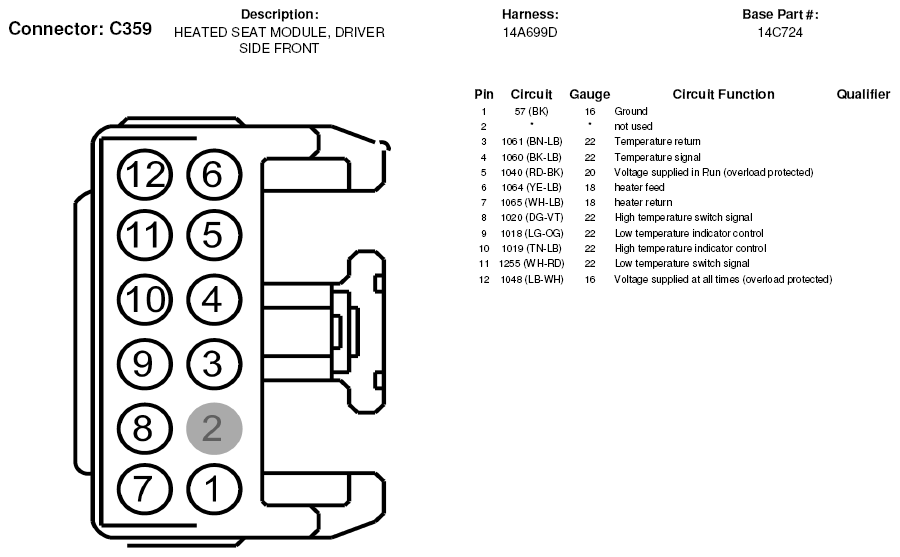

Fig 1: Driver Side Front Heated Seat Module Connector End View (C359)

G05600311

Courtesy of FORD MOTOR CO.
