Crown Victoria Base, 4.6 W
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Connector End Views
>>
Connector Views
>>
Climate Control Assembly Connectors
Climate Control Assembly Connectors

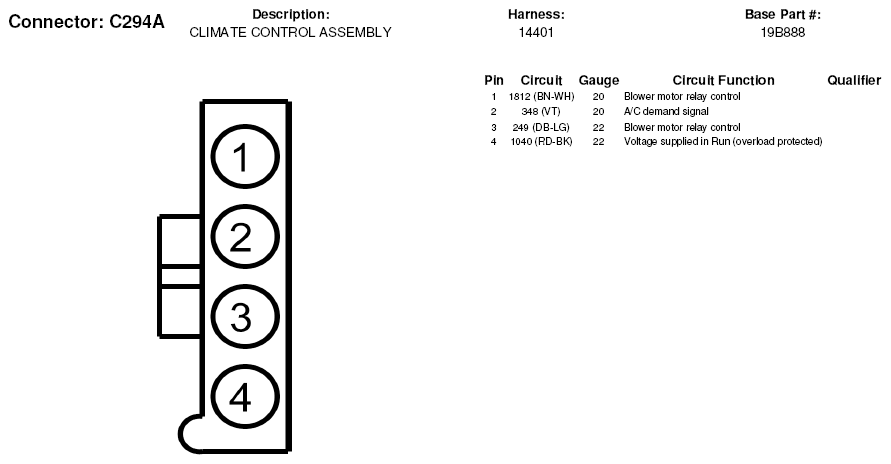

Fig 1: Climate Control Assembly Connector End View (C294A)
Courtesy of FORD MOTOR CO.

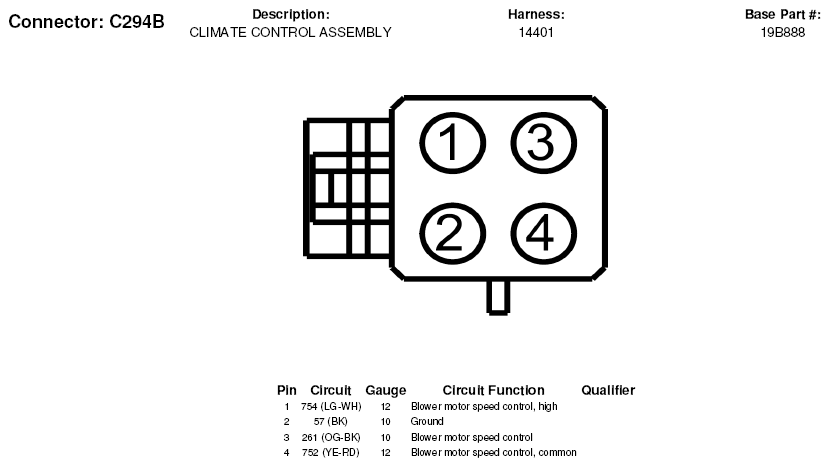

Fig 2: Climate Control Assembly Connector End View (C294B)
Courtesy of FORD MOTOR CO.

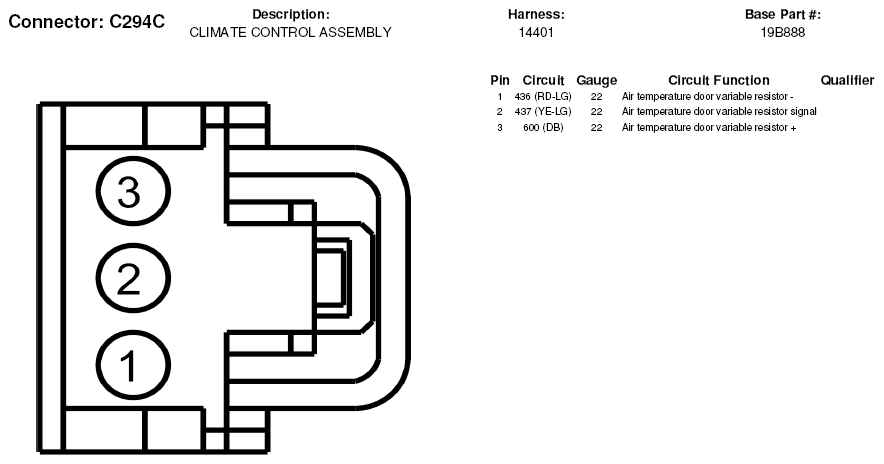

Fig 3: Climate Control Assembly Connector End View (C294C)
Courtesy of FORD MOTOR CO.

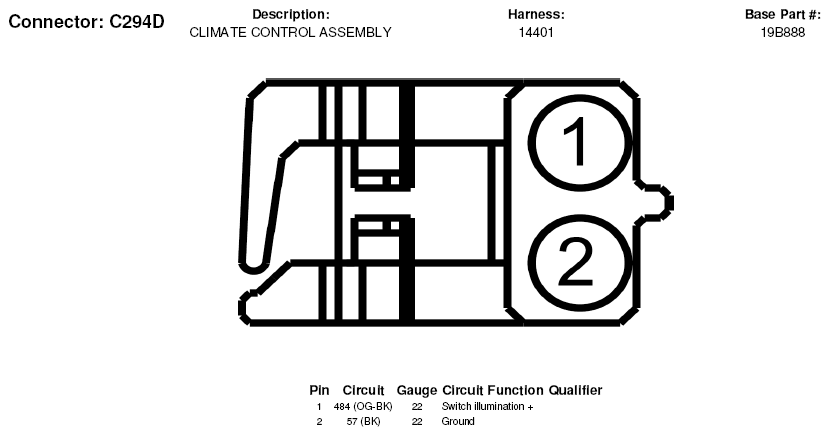

Fig 4: Climate Control Assembly Connector End View (C294D)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
